Sinotruk HOWO T7H Tractor Truck - ZZ4257V324HB1
Tractor / HOWO T7H
Models (Technical Specs)
| Vehicle type | Tractor Trucks |
| Model | ZZ4257V324HB1 |
| Dimension(mm) | 6800x2496x3668 |
| Engine | WEICHI |
| Curb weight(kg) | 9210 |
| Max speed(km/h) | 90, 102 |
| Drive type | 6x4 |
Overview
Sinotruk howo t7h tractor head price feature a partial triple frame (8+8+8/300) and reinforced front and rear multi-leaf springs (9/12), providing durability and stability even under heavy loads. With a BOCSH steering wheel and standard exhaust system, these tractors offer precise control and efficient exhaust management. The ABS (4S/4M) braking system and high triple bumper enhance safety during operations.
Sinotruk howo t7h tractor head price are equipped with main mechanical and sub-lightweight seats for operator comfort, and the option for different speed ratios (3.7, 3.93, 4.11, 4.42, 4.77, 5.26, 5.451, 5.73) allows customization based on specific requirements. The engineered intake system with an oil bath filter ensures clean air intake for optimal engine performance.
Sinotruk howo t7h tractor head price
Sinotruk howo t7h tractor head price are engineered with robust configurations to meet the demands of heavy-duty transportation tasks. These tractors come in various models, including T7H-P, T7H-G, T7H-W, and T7S cab options, offering versatility for different operational needs. The engine options range from WP10.380E2 to WP12.430E201 and MC11.43-30 to MC11-54-30, providing power outputs suitable for various applications.
| Production Year | new truck. |
| Cabin | T7H-G cab with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn |
| Cabin (2) | with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.; High Position Steel Bumper |
| Engine | Diesel 4-stroke direct injection diesel engine; Engine model: WD615. 47, 371HP; WP10.380E22, 380HP; WP12S.400E201, 400HP; 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R.; Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 1*9500 KGS; Steering with double T-cross section beam |
| Rear Axle | MCP16ZG , 2*16000KGS; Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles. |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Front suspension: 10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake; Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels; Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded; Starter: 24 V, 5.4 Kw; Alternator: 3-phase, 28 V, 1500 W; Batteries: 2 x 12 V, 165 Ah; Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse |
| Tire | 12.00R20 or 315/80R22.5 tires |
| Fuel Tank | 400L |
| Fifth Wheel | 90# or 50# |
| Color | Optional |
| Overall Dimension | 6900*2550*3400 mm |

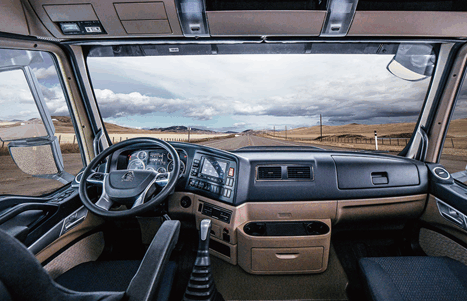

Smarter and more convenient
The 7-inch central control screen is adopted for convenient human-computer interaction. The multi-functional leather steering wheel are provided with 16 buttons, which are easy to operate and can be upgraded with functions such as Bluetooth phone, MP5 player, instrument menu and AEB.
More comfortable
Optimized air distribution at the driver and passenger side vents can provide a more comfortable body feeling. The overall air volume has increased by 9.5% compared to the previous generation.
Under the sleeper, an integrated super-large storage space is added to make the space utilization more reasonable.

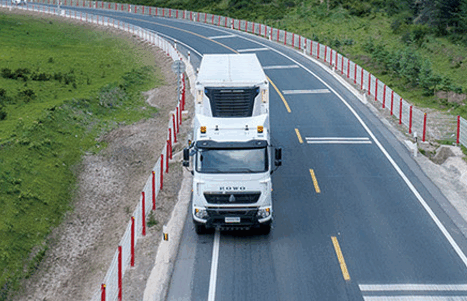

More safely,more quieter
The cab is designed with four-point suspension, which can filter out bumps and vibrations. Moreover, the cab shock absorbers and chassis shock absorbers have undergone comprehensive recalibration and tuning, so that the noise level of the complete vehicle is reduced by 3dB, creating a quieter driving environment.

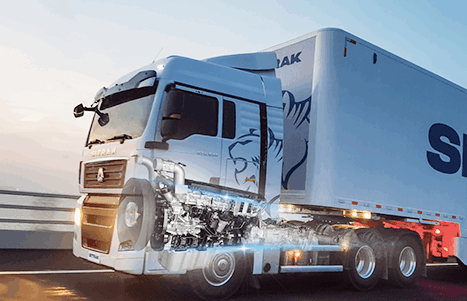

Golden Power
The Howo truck is upgraded to a new generation of golden power system, providing a richer range of power configurations to meet different needs. It can output strong power of up to 540 HP and 2500 Nm, and fully meet the emission requirements of Euro ll to Euro VI.
Advanced Driver Assistance System (ADAS)
We embrace a people-first approach to safety, putting the well-being of all road users at the forefront. Utilizing digital technology for intelligent monitoring and control, we wholeheartedly safeguard your safety during your journey.
