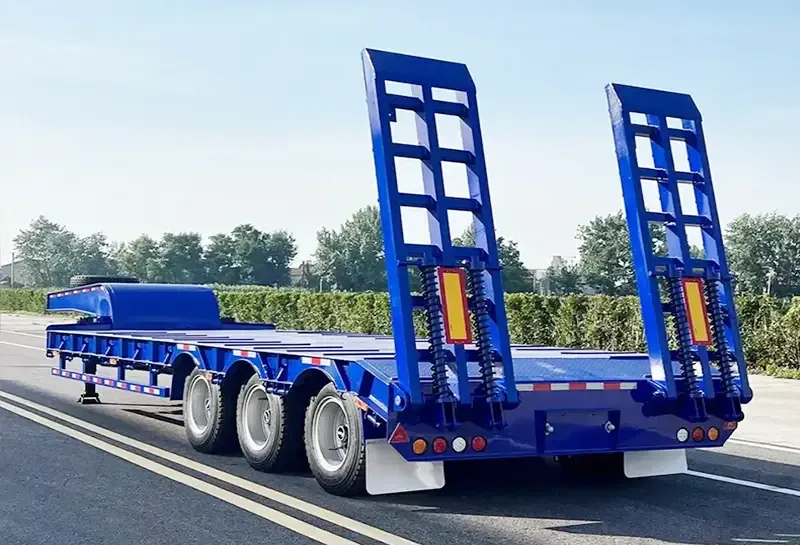

Sinotruk HOWO Low Bed Semi Trailer
Semi Trailers / Low Bed Trailer
Models (Technical Specs)
| Vehicle type | Semi Trailers |
| Overall dimension | 12500x2500x1550mm |
| Curb weight | 7000kg |
| Loading capacity | 50 000 kg |
| Tyre and quantity | 12R22.5 , 12 units |
| Axle brand and number | 13 ton , FUWA brand ,3 units |
| Painting | Optional |
Overview
Sinotruk Howo Low Bed Semi Trailer with ladder can generally be used for heavy construction in the industries of electric power construction, mining, metallurgy, chemical industry, hydroelectric and thermal power generation equipment, power station construction, heavy machinery manufacturing, oil fields, bridges, loading and unloading operations, and railroad construction. Or long-distance road transportation of non-movable limited goods (articles).
Sinotruk Howo Low Bed Semi Trailer is made of Q345B high-strength steel plate, which is characterized by light weight and strong bump resistance.
All the parts of Sinotruk Howo Low Bed Semi Trailer are made of domestic famous parts, including 13-ton axle, 28-ton linkage legs, double-cavity brake cylinders and so on.
Sinotruk Howo Low Bed Semi Trailer
Sinotruk Howo Low Bed Semi Trailer have 4/8/10 lightweight leaf springs, strong shock absorption, standard 12R tires, optional ABS; 4/6/8/12 sets of container locks can be installed inside the vehicle for transporting refrigerated containers, dry containers, 40-foot shipping containers and 20-foot shipping containers.
| Overall dimension (mm) | 12500x2500x1550 |
| Curb weight (kg) | 7000 |
| Loading capacity | 50 000 kg |
| Axle brand and number | 13 ton , FUWA brand ,3 units |
| Kingpin | 2 inch (50mm ) or 3.5 inch ( 90mm ) |
| Landing gear | 28 ton, Jost brand , Double speed |
| Steel spring | -10/10/10 leaf spring suspension |
| Suspension system | Commen mechanical suspension |
| The material of main beam | The height of the beam is 500mm, upper plate is 14 mm,down plate is 16mm, middle plate is 8 mm |
| Tyre and quantity | 12R22.5 , 12 units |
| Platform plate | 3 mm diamond plate |
| Braking system | Dual line braking system |
| Braking chamber | 6 double air chamber |
| Electrical system | 24V, 7 pin socket, one set-6 coin standrad cable |
| Light | Tail lamp with turn signal , braking lamp&reflector |
| Tool box | 1 set |
| Spare tire carrier | 2 sets |
| Painting | Optional |
