Sinotruk HOWO NX 440HP 4x2 Tractor Truck
Tractor / HOWO NX
Models (Technical Specs)
| Vehicle type | Tractor Trucks |
| GVW | 25000kg |
| Power | 440hp |
| Engine | WEICHAI |
| Fuel Tank | 400L |
| Transmission | HW19710 |
| Drive type | 4x2 |
Overview
Sinotruk Howo NX 4×2 Tractor Truck is equipped with a world-renowned MAN engine, delivering exceptional power and torque for heavy hauling and challenging terrains. MAN engines are known for their fuel efficiency, helping businesses reduce operating costs and minimize their environmental impact.
The 440 horsepower engine delivers need to tackle heavy loads and challenging terrains with ease.
Fuel Efficiency: Advanced engineering ensures optimal fuel consumption, reducing operational costs and maximizing profitability.
Reliability and Durability: MAN engines are built to last, providing years of dependable service even in the harshest condition
Sinotruk Howo NX 4×2 Tractor Truckdoesn’t compromise on driver comfort and safety. The spacious cabin is designed to minimize fatigue on long journeys, while advanced safety features provide peace of mind on the road.
Sinotruk Howo NX 6x4 Tractor Truck
Sinotruk Howo NX 4×2 Tractor Truck is built to last, featuring a heavy-duty chassis and robust components that can withstand the rigors of long-haul transportation. Sinotruk Howo NX 4×2 Tractor Truck configuration provides excellent maneuverability and stability, making it ideal for navigating Saudi Arabia’s diverse road network.
| Cabin | H77L cab.with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn |
| Cabin (2) | with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.; High Position Steel Bumper |
| Engine | Diesel 4-stroke direct injection diesel engine; Engine model: WP12.430E201, 430HP；; WD615.47, 371HP；; WP10.380E22 ,380HP；; WP12S400E201/WP12.400E201 ，400HP；; 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R.; Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 1*9500 KGS; Steering with double T-cross section beam |
| Rear Axle | MCP16ZG, 2*16000KGS; Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles. |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Front suspension: 10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake; Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels; Auxiliary brake: engine exhaust brake |

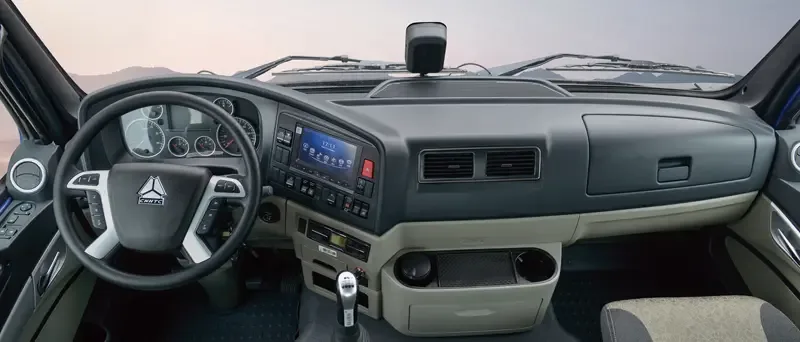

High comfort
The HOWO - NX series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.

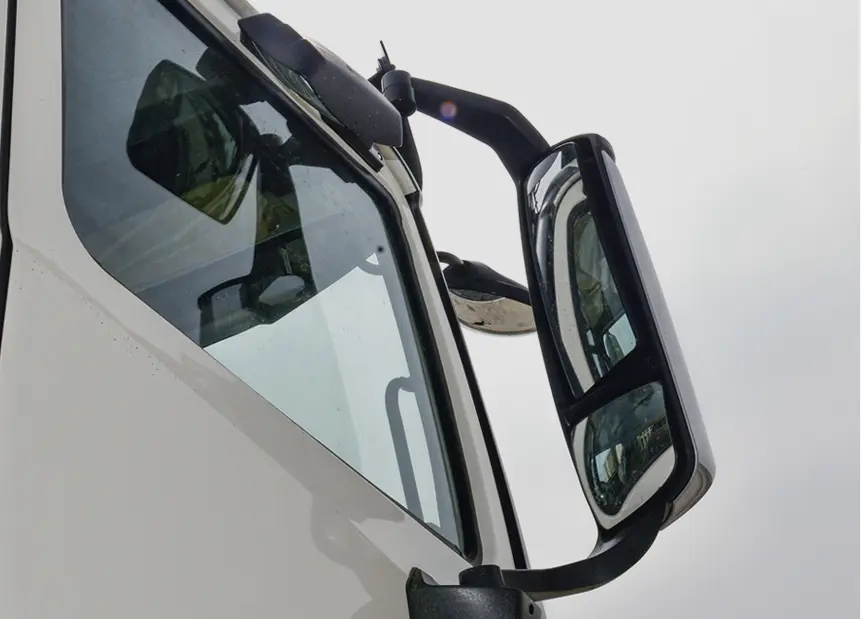

Safe cabin
The rigidity and strength of the cab body meet the EU ECE R29 certification standard; the design of the wide-angle rear-view mirror and lower viewing mirror increases the field of vision by 15% and improves safety.

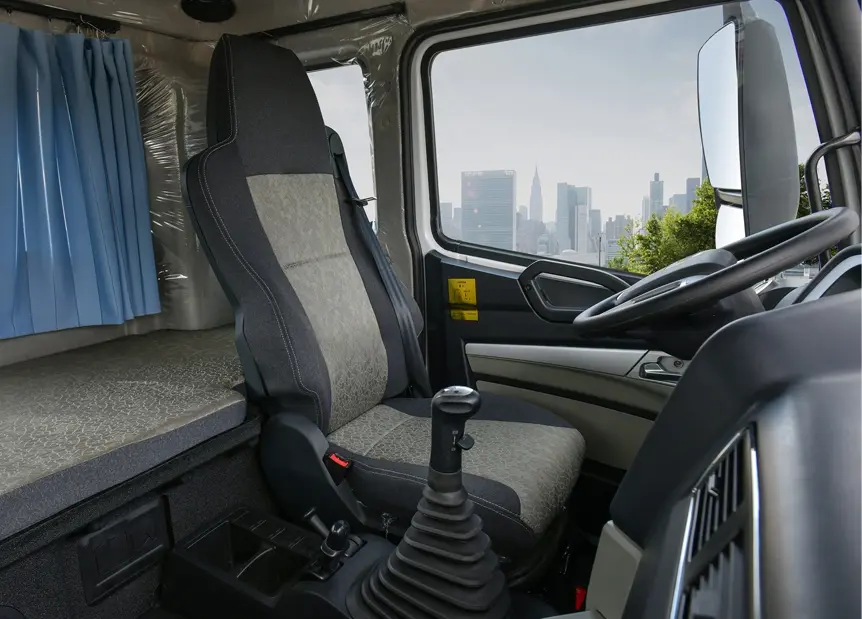

Air cushion
The air cushion helps the driver quickly find a suitable seating position; the ergonomic design of the seat belt and seat helps avoid the driver feeling suffocated due to emergency braking while driving.
Four-point air suspension
The four-point air suspension has good stability, shock-absorbing effect and comfort, and also has the function of tilting the cabin backward during a collision to ensure the safety of passengers.
