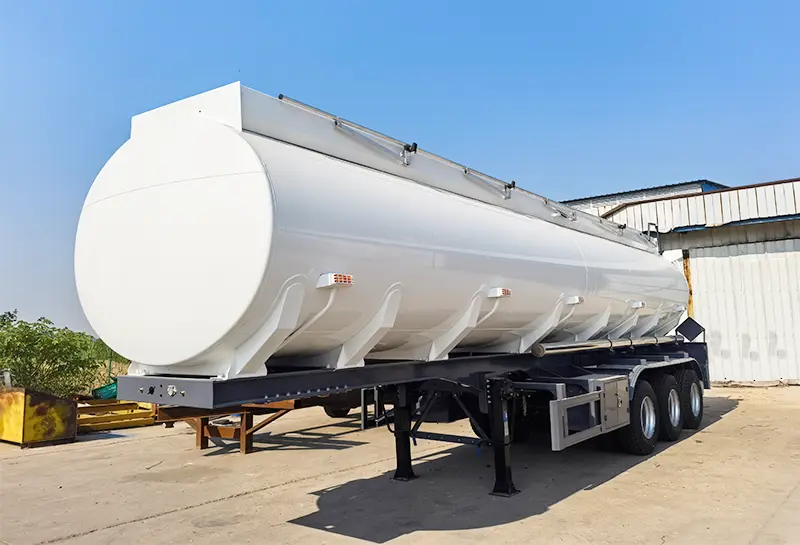

Sinotruk Trailer Oil Tanker Truck
Semi Trailers / Tank Trailer
Models (Technical Specs)
| Vehicle Type | Semi Trailers |
| Dimension | 10500*2500*3500mm |
The Sinotruk Trailer Oil Tanker Truck is an aluminum alloy tank semi-trailer, also known as an aluminum tank trailer or aluminum tank truck.
It consists of the tank body, power take-off device, drive shaft, gear oil pump and a complete pipe network system. The pipe network system is built from an oil pump, a three-way four-position ball valve, two-way ball valves, filters and piping. With a load capacity of 30 to 60 kiloliters, the trailer is available with two-axle or three-axle rear configurations, and can be matched with the tractor of your choice.
Thanks to its lightweight aluminum construction, the tank trailer maximizes payload while reducing overall weight — an important advantage in countries with strict weight limits. It is widely used for the long-distance transportation of gasoline, diesel and other petroleum products, serving gas stations, factories and other fuel-consuming sites.
| Fuel tank trailer capacity | 30 KL 30,000liters, 7925 gallons |
| Compartment | 2-10 |
| Payload | 39-41T (Reference) |
| Fuel Tank trailer weight | 10.6T |
| Material | Iron Steel, Stainless Steel |
| Chassis | High Strength Steel |
| Valve | Civacon, EMCO, HELI, JLME, HENGE |
| Axle | 2/3/4 axle; BPW, FUWA, L1, HO’S, SAF, PDME |
| Suspension | Air suspension, Mechanical, Bogie |
| Brake system | Dual Line brake system, T30/30 Chamber, Wabco emergency valve, ABS/EBS optional |
| Fuel Tanker Trailer Parts | Mudguard, Ladder, 1 standard toolbox, 1 coat of anticorrosive prime, 2 coats of final paint, Polyurethane paint, Landing gear, 9.0-22.5 steel wheel ri |
| Application | Fuel, Oil, Crude Oil, Diesel, Petrol, Petroleum, Gasoline |
Aluminum Tank Semi-Trailer Overview
The Sinotruk Trailer Oil Tanker Truck is an aluminum alloy tank semi-trailer, also known as an aluminum tank trailer or aluminum tank truck, designed for safe and efficient fuel transportation.
Precise Pipe Network System
It consists of the tank body, power take-off device, drive shaft, gear oil pump and a complete pipe network system — built from an oil pump, a three-way four-position ball valve, two-way ball valves, filters and piping.
Wide Applications
With a load capacity of 30 to 60 kiloliters and lightweight aluminum construction, it is widely used for the long-distance transportation of gasoline, diesel and other petroleum products, serving gas stations, factories and fuel-consuming sites.
