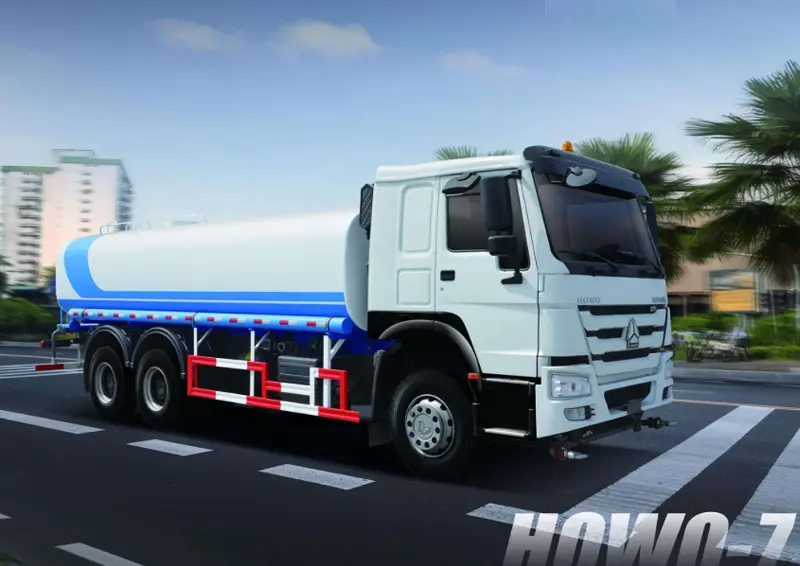

Sinotruk HOWO 6x4 Water Truck
Special Vehicle / HOWO 7
Models (Technical Specs)
| Vehicle Type | Special Vehicles |
| Model | ZZ1257N4347D1B |
| Engine | WP12.400E201 |
| Dimension | 9800*2500*3350mm |
| Drive Type | 6x4 |
The Sinotruk Howo 7 6×4 water truck is an efficient vehicle designed for urban and rural water transportation. With a 6×4 drive, it has the power and stability to maneuver smoothly in all kinds of complex road conditions.The Sinotruk Howo 7 water truck has a large water tank capacity, typically up to 10 cubic meters or more, to meet large-scale irrigation, firefighting and cleaning needs. Whether it is on the road in the city or in the field in the countryside, the Sinotruk Howo 7 6×4 water truck works excellently and is ideal for all types of water transportation. Its reliable performance and economical operating costs make it the first choice for many users. Equipped with a state-of-the-art pumping system, the Sinotruk Howo 7 6×4 water truck is able to fill and drain quickly and efficiently, which greatly improves work efficiency. In addition, the Sinotruk Howo 7 6×4 water truck has a well-designed body with good durability and corrosion resistance, ensuring good performance over a long period of use.
| Driving Type | LHD (RHD is optional) |
| Cabin | HW76 cab, with one sleeper, two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 1×9000 KGSSteering with double T-cross section beam |
| Rear Axle | HC16, 2×16000 KGSPressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.Ratio:4.42 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross membersFront suspension:10 semi-elli |
| Brake | Service brake: dual circuit compressed air brakeParking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheel |
| Electrics | Operating voltage: 24 V, negative groundedStarter: 24 V, 5.4 KwAlternator: 3-phase, 28 V, 1500 WBatteries: 2 x 12 V, 165 AhCigar-lighter, horn, headla |
| Tyres | 12.00R20, Radial tires with one spare tire |
| Fuel Tank | 400L |
| Tank Body | Capacity: 20 Cubic Meters, 20,000 LitersFront and Rear sprinkling systemHigh Press Water Jet. Turning Lights |
Sinotruk Howo 6x4 Water Truck
The Sinotruk Howo 7 6×4 water truck is an efficient vehicle designed for urban and rural water transportation. With a 6×4 drive, it has the power and stability to maneuver smoothly in all kinds of complex road conditions.The Sinotruk Howo 7 water truck has a large water tank capacity, typically up to 10 cubic meters or more, to meet large-scale irrigation, firefighting and cleaning needs.
Whether it is on the road in the city or in the field in the countryside, the Sinotruk Howo 7 6×4 water truck works excellently and is ideal for all types of water transportation. Its reliable performance and economical operating costs make it the first choice for many users.
Equipped with a state-of-the-art pumping system, the Sinotruk Howo 7 6×4 water truck is able to fill and drain quickly and efficiently, which greatly improves work efficiency. In addition, the Sinotruk Howo 7 6×4 water truck has a well-designed body with good durability and corrosion resistance, ensuring good performance over a long period of use.
