Sinotruk HOWO 7 371HP Garbage Truck
Special Vehicle / HOWO 7
Models (Technical Specs)
| Vehicle type | Special Vehicles |
| Model | ZZ1257N4647B1 |
| Power | 371HP |
| Engine | SINOTRUK |
| Emission level | Euro 2 |
| Body capacity | 20 CBM |
| Drive type | 4x2/6x4 |
Overview
The Sinotruk Howo 7 garbage truck is an efficient and environmentally friendly vehicle designed for municipal waste collection and transportation. With advanced technology and design concepts, this model has strong power and superior maneuverability, and is able to drive smoothly on a variety of urban roads and in complex environments.Sinotruk Howo 7 garbage trucks usually have a large capacity of dumpster, which is able to meet the needs of the city’s daily garbage disposal, reducing the frequency of emptying, and improving the efficiency of the work.
The Sinotruk Howo 7 garbage truck is equipped with an efficient compression system that compresses the waste during loading, maximizing the amount of waste that can be loaded. In addition, the Sinotruk Howo 7 garbage truck‘s body design is optimized for good sealing and durability, ensuring that there is no leakage during transportation and keeping the urban environment tidy.
Whether on city streets or in rural communities, the Sinotruk Howo 7 garbage truck is ideal for all types of waste disposal. Sinotruk Howo 7 garbage truck reliable performance and economical operating costs make it the first choice for many sanitation companies, helping to clean and beautify the urban environment.
Sinotruk Howo 7 Garbage Truck
Safety and user-friendly design is one of the highlights of Sinotruk Howo 7 garbage truck, the vehicle is equipped with multiple safety protection systems to ensure the safety of operators. At the same time, the Sinotruk Howo 7 garbage truck’s easy-to-use operating system facilitates the driver’s waste collection and transportation operations.
| Production Year | New truck. |
| Cabin | HW76 cab, with one Sleeper and Air Conditioner(A/C) |
| Engine | Manual Injection; Diesel 4-stroke direct injection diesel engine; Engine model: WD615. 47, 371HP; WP10.380E22, 380HP; WP12S.400E201, 400HP; 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; Displacement: 9.726 L/11.596L |
| Transmission | HW19710, 10 Fronts & 2 Reverses; Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 9500 KGS |
| Rear Axle | MCX16ZG/MCP16ZG, 2×16000 KGS |
| Tires | 12.00R20, radial tires with one spare tire or 315/80R22.5 Tubeless Tires |
| Fuel Tank | 400L |
| Cargo Body | 16-23 cubic meters (Optional); Compartment & Material; • Arc-shaped Compartment; • Rear end adopts fully sealed hopper type; • Compartment material made of Q345 high-strength manganese steel; • 5mm thick sides and 5mm thick bottom |
| Cargo Body (2) | • New type crushable scraper plate; • Bidirectional peristaltic compression; Hydraulic & Control System; • Mid-mounted and rear-mounted dual sewage tanks; • Changyuan dual oil pump; • Brand-name oil cylinder |
| Cargo Body (3) | • Bidirectional filtering hydraulic oil storage tank; • Yangzhou Zhongmei multi-way valve; • Back pressure valve; • Safety valve; • Pressure gauge; • Independent hydraulic locking hook for rear loader; • Equipped with loader pedal, sewage outlet |
| Cargo Body (4) | and drain ball valve; • Emergency stop switches on left and right sides; Operation Method; • Operation control boxes installed in cab and at rear of vehicle (with wireless remote control); • Operation mode: manual + electric dual control |
| Cargo Body (5) | CAN electronic control system; • The operation control box in the cab controls pushing and unloading, and selects operation mode; • The operation control box at the rear controls the operation of the compaction and loading mechanisms |
| Cargo Body (6) | Lighting & Accessories; • Vehicle high-position clearance lights/side lights/work lights; • Cleaning water tank on vehicle side; Process & Coating; • All workpieces undergo sandblasting treatment (to enhance paint adhesion) |
| Cargo Body (7) | • All parts are electrostatically plastic-sprayed (environmentally friendly, wear-resistant, and corrosion-resistant); • All parts are fastened with high-strength bolts; Marking |
| Cargo Body (8) | • Operation panels and vehicle-wide markings are in both Chinese and English versions |

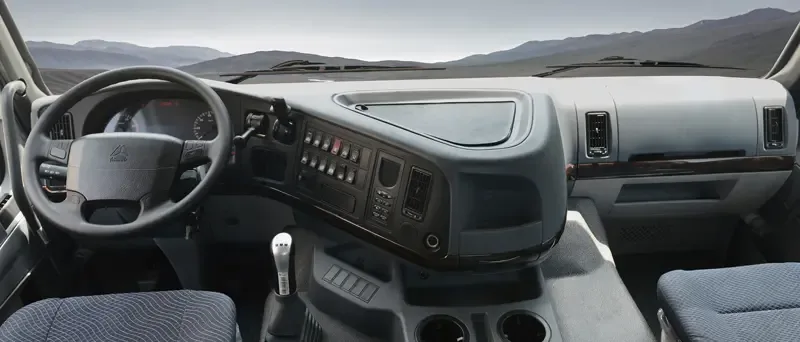

High comfort
The HOWO 7 series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.

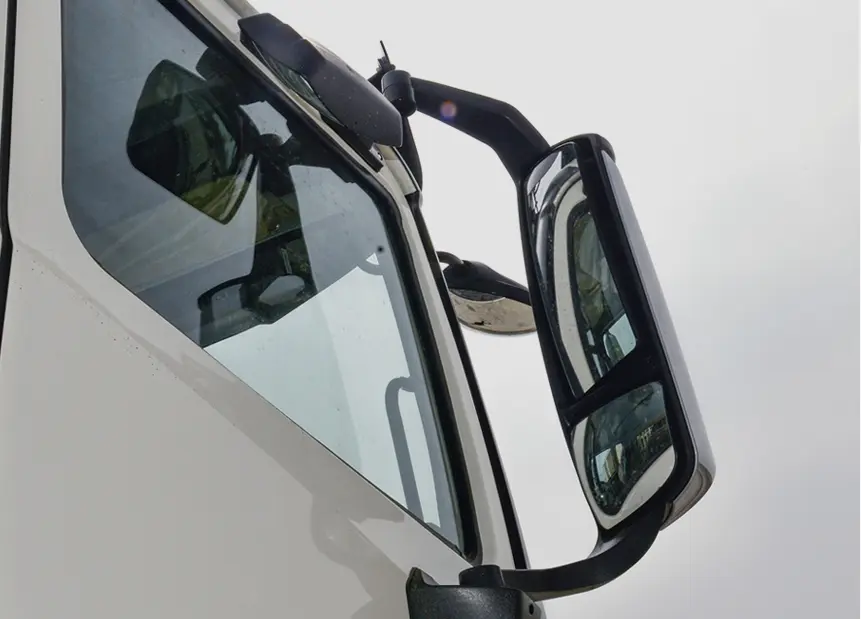

Safe cabin
The cabin's body is constructed with a one-piece steel frame, providing robust strength, rigidity, and superior resistance to impacts and external forces. Its safety performance has been proven through stringent crash testing.

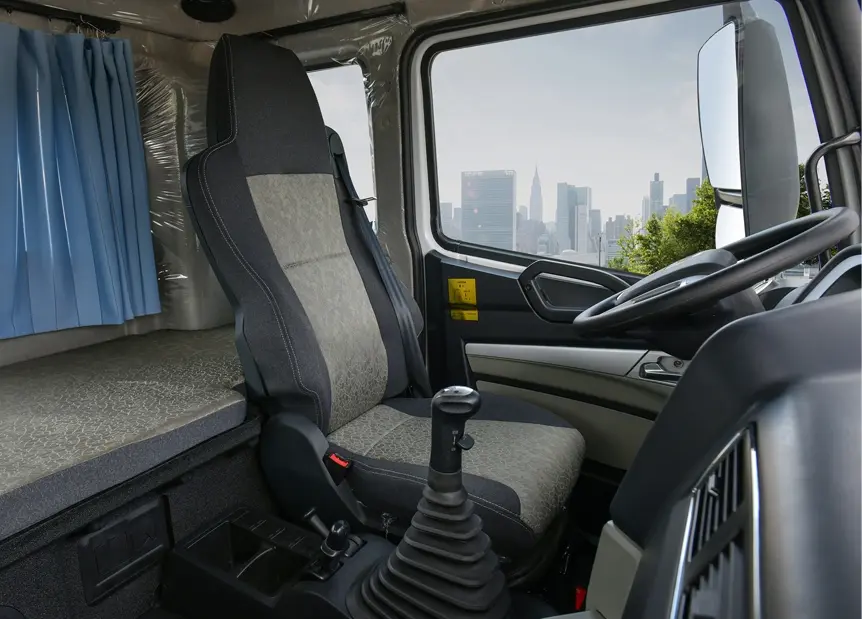

Air cushion
The air cushion helps the driver quickly find a suitable seating position; the ergonomic design of the seat belt and seat helps avoid the driver feeling suffocated due to emergency braking while driving.
Four-point air suspension
The four-point air suspension provides excellent stability, shock absorption, and comfort, and features a cabin rearward displacement function during collisions, ensuring passenger safety.
