Sinotruk HOWO TX 6x4 Fuel Tanker
Special Vehicle / HOWO TX
Models (Technical Specs)
| Vehicle type | Semi Trailers |
| Tank Size: | 6500×2490×1650mm |
| Maximum Speed | 80km/h |
| Tank volume | 19.5m³ |
| Total Quality | 26t |
| Engine | Sinotruk MC09.35-60 |
| Drive type | 6x4 |
Overview
The Sinotruk Howo TX 6×4 tanker truck is a high-performance heavy-duty truck designed for oil transportation. With a 6×4 drive layout, it offers the power and stability to drive safely in all kinds of complex road conditions.The Sinotruk Howo TX tanker truck has a fuel tank capacity of typically more than 20,000 liters, which is suitable for long-distance transportation and large-scale oil distribution.
Equipped with a state-of-the-art pumping system, the Sinotruk Howo TX 6×4 tanker truck is able to carry out refueling and unloading operations quickly and efficiently, which greatly improves work efficiency. In addition, the Sinotruk Howo TX 6×4 tanker truck’s body design is carefully optimized for durability and corrosion resistance, ensuring excellent performance over long periods of use.
Sinotruk Howo TX 6x4 tanker truck
Safety is one of the highlights of Sinotruk Howo TX tanker trucks. The Sinotruk Howo TX 6×4 tanker truck is equipped with multiple safety protection systems to ensure the safety and stability of the oil during transportation. Whether it’s at a gas station in the city or in a remote oil field, the Sinotruk Howo TX 6×4 tanker truck excels and is ideal for all types of oil transportation. Its reliable performance and economical operating costs make it the first choice for many logistics companies.
| Truck name: | Sinotruk Howo TX 6×4 tanker truck |
| Form of drive: | 6X4 |
| Wheelbase: | 4575+1400mm |
| Body dimensions: | 9.84m |
| Front/rear overhang: | 2.5m |
| Rated load: | 3.28tons |
| Overall vehicle weight: | 12.2tons |
| Top speed: | 80km/h |
| Tank Size: | 6500×2490×1650m |
| Front wheelbase: | 2035mm |
| Rear wheelbase: | 1850/1850mm |
| Total Quality: | 26tons; Engine Parameters |
| Engine Model: | sinotruk MC09.35-60 |
| Number of Cylinders: | 5-cylinder |
| Maximum Output: | 257kW |
| Maximum Horsepower: | 350hp |
| Displacement: | 8.765L |
| Emission Standard: | National Six |
| Engine Form: | Common Rail+EGR+DOC+DPF+SCR |
| Fuel Type: | Diesel |
| Rated Speed: | 1900rpm |
| Engine Brand. | sinotruk |

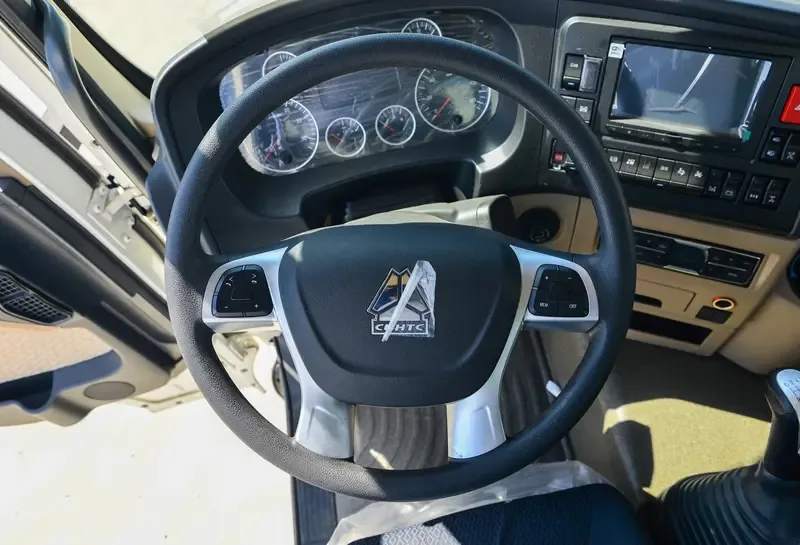

Driver's compartment
Mechanical shock-absorbing seats, multi-function dashboard, and reversing radar enhance driving comfort and safety. Intelligence: center control screen, navigation system and reverse camera for improved ease of operation.

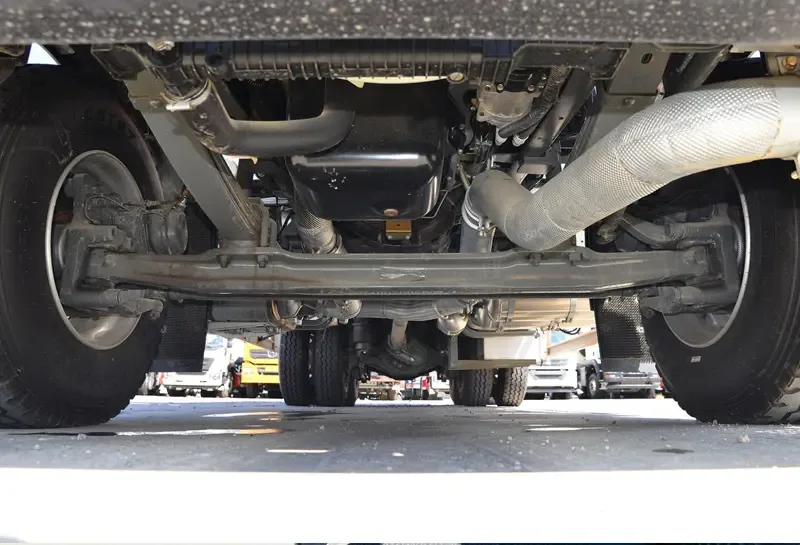

Power System
Equipped with a 350hp diesel engine (model MC11H.49-61), with a maximum power of 257kW and peak torque of 1,400N-m, it has abundant power and quick response. The 6X4 drive format (three-axle rear double axle drive) with 12.00R20 radial tires provides excellent traction and adaptability to complex road conditions.

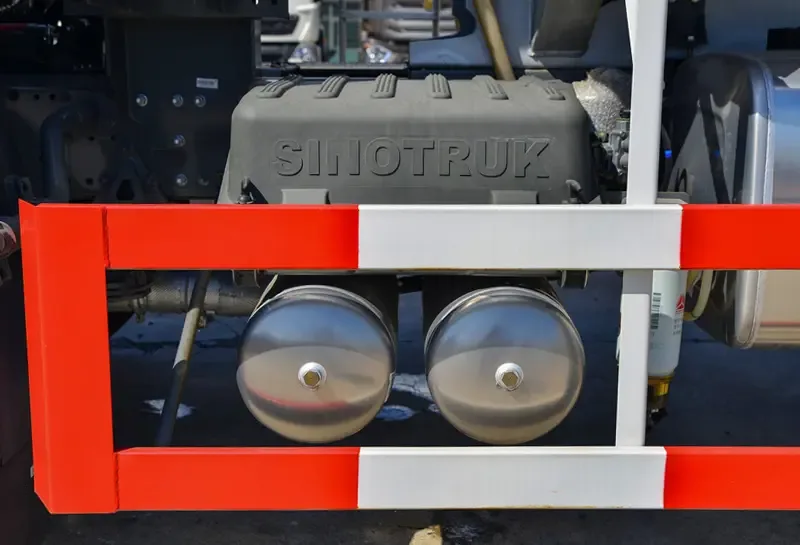

Economy and Environmental Protection
HW19710 10-speed manual transmission and 4.42 speed ratio rear axle optimize power transmission and reduce fuel consumption. Meet National VI emission standards and reduce environmental pollution.

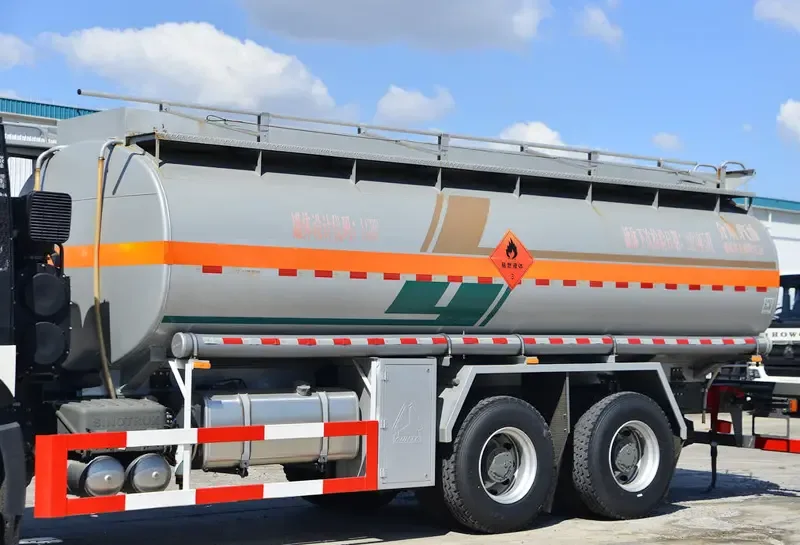

Tank Structure
Aluminum alloy tank design is lightweight and corrosion-resistant, reducing the risk of loss and contamination in oil transportation. Standard volume is 20,000 liters (some models support customized capacity), meeting the demand for large-capacity transportation.

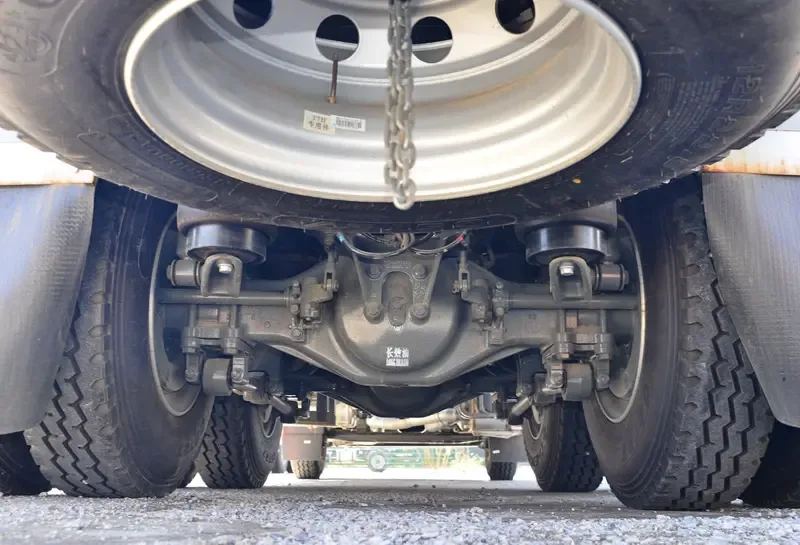

Safety and Intelligent Configuration
Standard equipped with ABS anti-lock system, air brake and crash bar to enhance emergency braking safety3 Optional GPS positioning and remote monitoring system, real-time tracking of oil temperature, pressure and leaks.
