Sinotruk HOWO Fuel Tanker
Special Vehicle / HOWO 7
Models (Technical Specs)
| Vehicle type | Special Vehicles |
| Tank Size: | 6500×2490×1650mm |
| Maximum Speed | 80km/h |
| Tank volume | 19.5m³ |
| Total Quality | 26t |
| Engine | Sinotruk MC09.35-60 |
| Drive type | 6x4 |
Overview
With its professional design and efficient performance,Sinotruk howo fuel tanker from china TX 350 6X4 oil truck excels in the field of oil transportation.
Sinotruk howo fuel tanker from china Typical application scenarios
Petrochemical transportation: suitable for long-distance transportation of gasoline, diesel and liquid chemical raw materials, adapting to high temperature and high pressure environment.
Industrial liquid distribution: such as lubricating oil, asphalt, etc. The corrosion-resistant design of the tank ensures the purity of the medium.
Fuel supply in remote areas: Sinotruk howo fuel tanker from china 6X4 drive and high ground clearance design can cope with rugged road conditions such as mountainous areas and mining areas.
Dangerous goods transportation: conforms to the standard of dangerous goods transportation, equipped with multiple safety protection systems to ensure transportation safety.
SINOTRUK HOWO FUEL TANKER
With the core advantages of high efficiency power, lightweight tank and intelligent management, Sinotruk howo fuel tanker from china TX 350 hp 6X4 oil tanker widely covers energy transportation and industrial fields, taking into account the safety and economy, and is a reliable solution for modern oil transportation.
| Production Year | New truck. |
| Cabin | TX-F cab, with one Sleeper and Air Conditioner(A/C) |
| Engine | Manual Injection; Diesel 4-stroke direct injection diesel engine; Engine model: WD615. 47, 371HP; 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; Displacement: 9.726 L |
| Transmission | HW19710, 10 Fronts & 2 Reverses; Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 9500 KGS |
| Rear Axle | MCX16ZG/ MCP 16ZG, 2×16000 KGS |
| Tires | 12.00R20, radial tires with one spare tire or 315/80R22.5 Tubeless Tires |
| Fuel Tank | 400L |
| Cargo Body | 20/25 cubic meters, optional( fuel dispenser, a fow meter and reel pipe gun) |

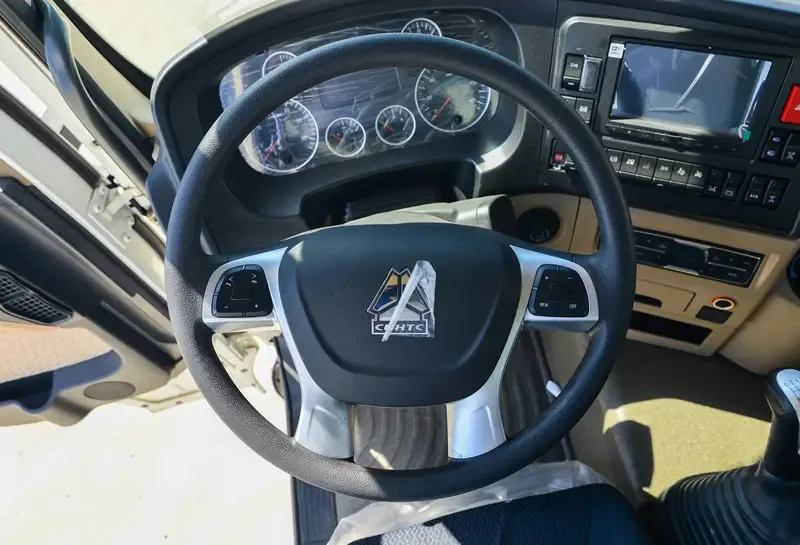

Driver's compartment
Mechanical shock-absorbing seats, multi-function dashboard, and reversing radar enhance driving comfort and safety. Intelligence: center control screen, navigation system and reverse camera for improved ease of operation.

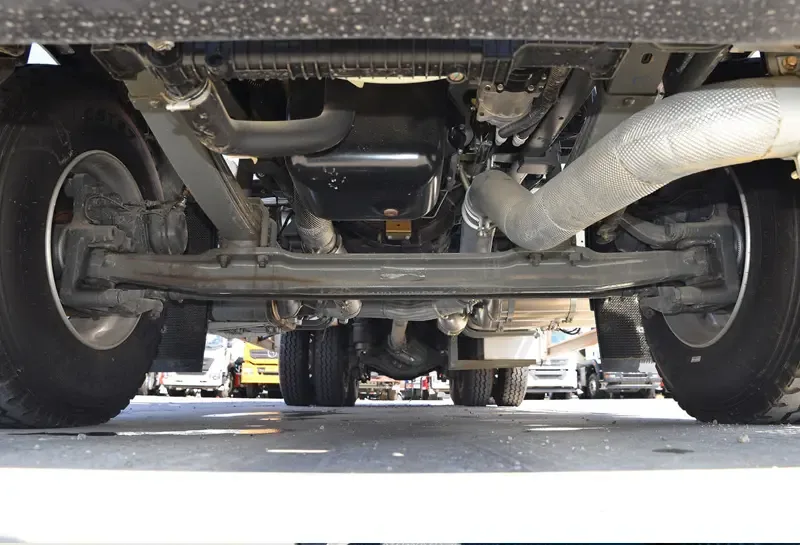

Power System
Equipped with a 350hp diesel engine (model MC11H.49-61), with a maximum power of 257kW and peak torque of 1,400N-m, it has abundant power and quick response. The 6X4 drive format (three-axle rear double axle drive) with 12.00R20 radial tires provides excellent traction and adaptability to complex road conditions.

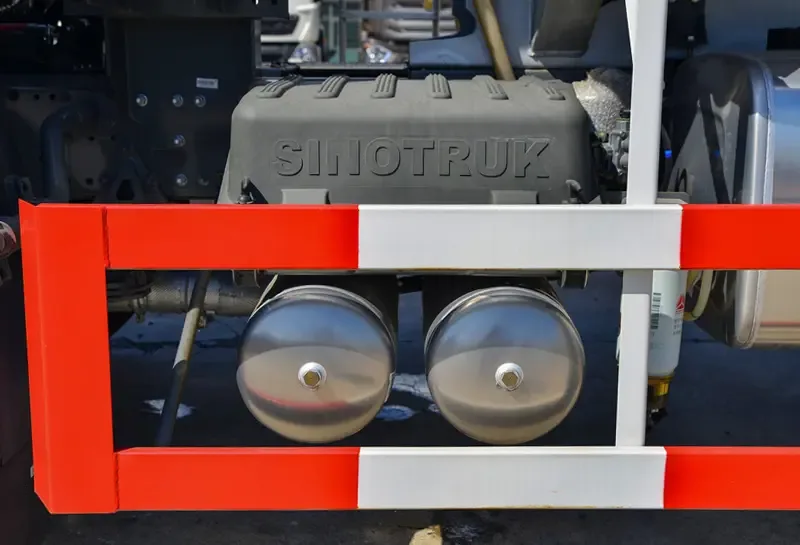

Economy and Environmental Protection
HW19710 10-speed manual transmission and 4.42 speed ratio rear axle optimize power transmission and reduce fuel consumption. Meet National VI emission standards and reduce environmental pollution.

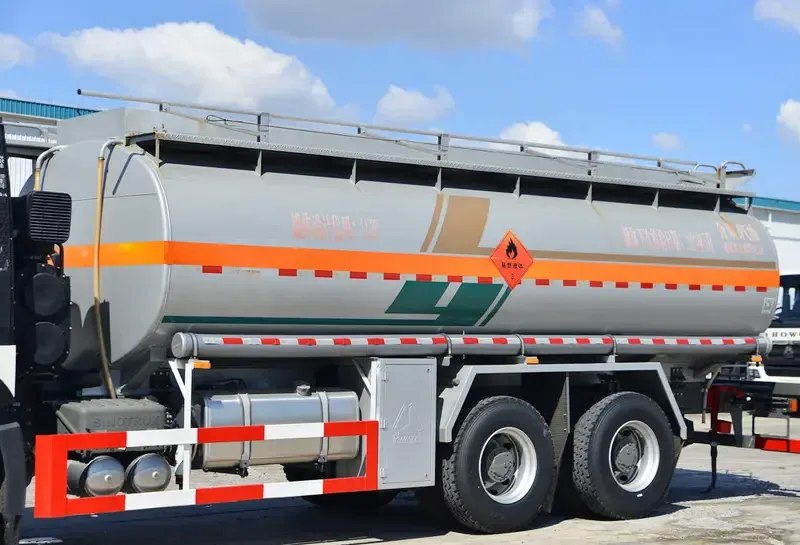

Tank Structure
Aluminum alloy tank design is lightweight and corrosion-resistant, reducing the risk of loss and contamination in oil transportation. Standard volume is 20,000 liters (some models support customized capacity), meeting the demand for large-capacity transportation.

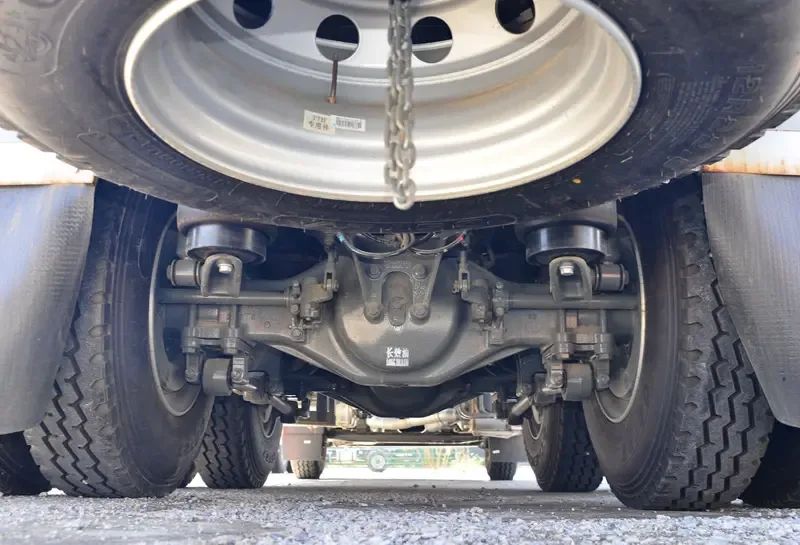

Safety and Intelligent Configuration
Standard equipped with ABS anti-lock system, air brake and crash bar to enhance emergency braking safety3 Optional GPS positioning and remote monitoring system, real-time tracking of oil temperature, pressure and leaks.
