Sinotruk HOWO TX 8x4 Mixer Truck
Mixer Truck / HOWO TX Mixer Truck
Models (Technical Specs)
| Vehicle type | Mixer Trucks |
| Model | ZZ1317N3267B1R |
| Dimension | 12000×2496×3950mm |
| Maximum horsepower | 371HP |
| Mixing dynamic volume | 12m³ |
| Engine | Sinotruck MC07H.35-60 |
| Drive type | 8x4 |
Overview
Efficient and Reliable Engineering Partner: Sinotruk Howo TX 8×4 Mixer Truck
As a star product of China National Heavy Duty Truck (CNHTC), Sinotruk Howo TX 8×4 Mixer Truck has become a benchmark model in the field of concrete transportation due to its excellent performance and stability. The truck adopts 8×4 drive mode and is equipped with a high-power National VI emission engine with strong power and excellent fuel economy, which can easily cope with complex road conditions and high-intensity operation.
The Sinotruk Howo TX 8×4 Mixer Truck’s mixing drum is scientifically designed with wear-resistant steel and double-screw blade technology to ensure even mixing of concrete and maximize discharge efficiency. The chassis structure is reinforced to provide a high load capacity of 12-14 cubic meters, which is accurately controlled by the hydraulic system to significantly improve the progress and quality of construction.
Whether for large-scale infrastructure projects or urban construction, the Sinotruk Howo TX 8×4 Mixer Truck continues to contribute to the efficient development of the construction machinery field with its high reliability, low operating costs and wide adaptability.
Sinotruk Howo TX 8x4 Mixer Truck
In terms of maneuverability, the Sinotruk Howo TX 8×4 Mixer Truck is equipped with an intelligent driver assistance system and a wide-view cab, ensuring safe and comfortable operation. In addition, the vehicle is easy to maintain, the modularized design of key components prolongs its service life, and the after-sales service network covers the whole country, providing round-the-clock protection for the construction team.
| Cabin | TX -F cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn |
| Cabin (2) | with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
| Engine | Diesel 4-stroke direct injection diesel engine; Engine model:WD615.47, 371HP; 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R; Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 1×9500 KGS; Steering with double T-cross section beam |
| Rear Axle | MCX16ZG, 2×16000 KGS; Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members; Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer |
| Chassis (2) | Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake; Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels; Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded; Starter: 24 V, 5.4 Kw; Alternator: 3-phase, 28 V, 1500 W; Batteries: 2 x 12 V, 165 Ah; Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 12.00R20, Radial (steel wire) Tires. 10+1 Pics. |
| Mixer Body | Tank Body: it can as your requirements |
| Fuel Tank | 400L |
| Overall Dimension | 9000*2550*3950 mm |
Ideal Working Environment
Sinotruk TX mixer truck for sale south africa cab is designed with the driver in mind, prioritizing comfort and convenience to enhance both work and living conditions. Every detail reflects a deep understanding of their needs.
High Comfort
Featuring an adjustable air suspension seat, the HOWO-TX offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort. Crafted from high-quality, breathable materials, the seat effectively reduces fatigue during long drives.
The thoughtfully designed rest area prioritizes driver well-being, featuring a comfortable sleeper berth to ensure a restorative rest after completing a journey, allowing drivers to recharge and prepare for the road ahead.

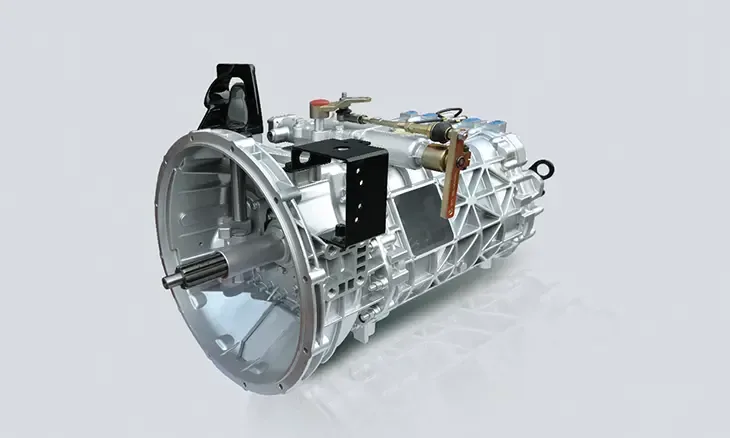

Transmission - Always in the Right Gear
The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

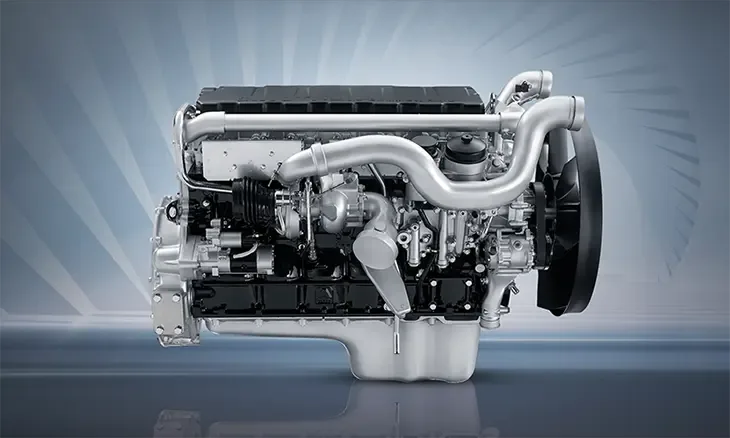

SINOTRUK's Exclusive High-End Power
Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.

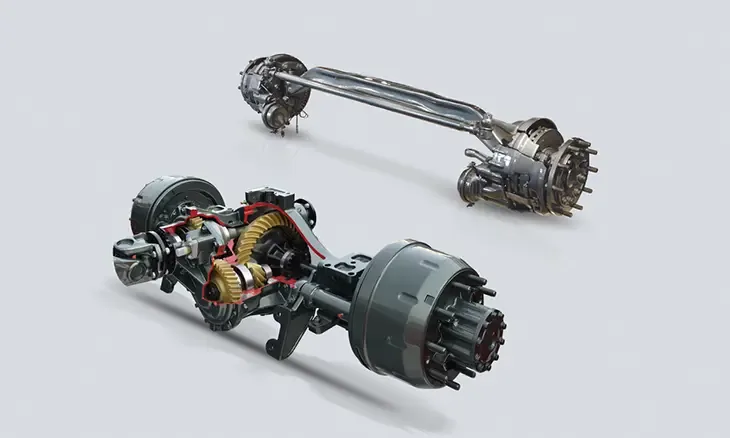

Axles - Carry More, Cost Less
The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life to accommodate various road conditions.
