Sinotruk HOWO NX 380 6x4 Mixer Truck
Mixer Truck / HOWO NX
Models (Technical Specs)
| Vehicle type | Mixer Trucks |
| Model | ZZ1257V384JB1R |
| Dimension(m) | 1000×2.550×3.98 |
| Maximum Speed | 82km/h |
| Rated Load | 17tons |
| Engine | Sinotruck D10.38-40 |
| Drive type | 6x4 |
Overview
Sinotruck’s “How Han” n-series Sinotruk howo NX 380 6×4 mixer truck can be optionally equipped with Sinotruck’s Mann-Tech MC-series engine, HW-series transmission and aluminum alloy shell, as well as Mann-Tech axles special for construction vehicles. With high wheel-end driving force and high reliability, Sinotruk howo NX 380 6×4 mixer truck can be applied to various road conditions. The minimum specific fuel consumption of the engine is less than 186g/kWh, which is at the international leading level.
In addition, through the use of aluminum alloy fuel tank, aluminum alloy gas tank, less leaf spring suspension and other lightweight configuration, the weight of the whole vehicle is reduced by 0.5-0.8t. The cab suspension system with China Heavy Duty Truck (HDDT) technology effectively reduces the vibration in the cab, thus reducing driving fatigue. Sinotruk howo NX 380 6×4 mixer truck ,adopting breakaway design, the cab moves backward after being impacted by certain external force, which strengthens the protection of drivers and passengers, and the passive safety is unparalleled.
Sinotruk howo NX 380 6x4 mixer truck
In recent years, with the continuous construction of large-scale infrastructure projects in China, the demand for Sinotruk howo NX 380 6×4 mixer truck is also on the rise.Sinotruk has 20 years of rich experience in this field. The newly launched “How Han” n-series Sinotruk howo NX 380 6×4 mixer truck are favored by users for their multi-faceted advantages and have become the new favorites in the infrastructure market.
| Cabin | H77L cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn |
| Cabin (2) | with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
| Engine | Diesel 4-stroke direct injection diesel engine; Engine model: WD615.47, 371HP; 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R; Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 1×9500 KGS; Steering with double T-cross section beam |
| Rear Axle | MCX16ZG, 2×16000 KGS; Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members; Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer |
| Chassis (2) | Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake; Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels; Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded; Starter: 24 V, 5.4 Kw; Alternator: 3-phase, 28 V, 1500 W; Batteries: 2 x 12 V, 165 Ah; Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 12.00R20, Radial (steel wire) Tires. 10+1 Pics. |
| Mixer Body | Tank Body: it can as your requirements |
| Fuel Tank | 400L |
| Overall Dimension | 9000*2550*3950 mm |

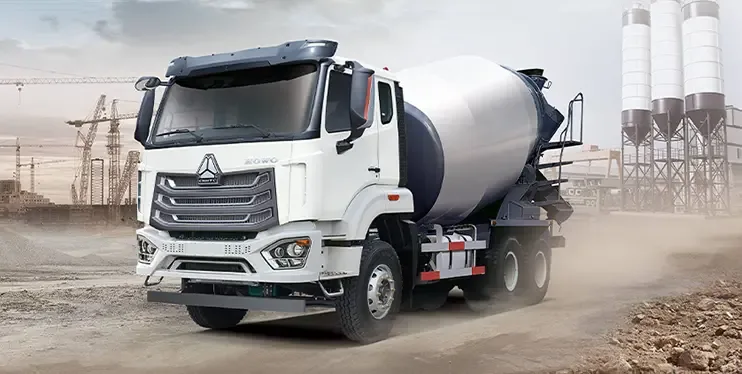

Superior loading performance
With the super–large feeding diameter, the feeding efficiency is better than the industry level by more than 5%. The discharging is high-efficient with discharging speed 20% higher than the industry level.
Blades are designed with a continuous trajectory line, providing uniform stirring, fast discharging and low residual rate. The integrated pilot valve assembly realizes quick switching ot water supply and cleaning, and automatic cleaning.
Fuel pumps and motors are internationally famous brands such as PMP in Italy. Rexroth in Germany and SAUER in the United States, with stable operation, low failure rate and long service life.
Waterproof design for the whole vehicle: A special waterproof design is adopted for all kinds of wiring harnesses and sensors. The vehicle can be cleaned with spray water

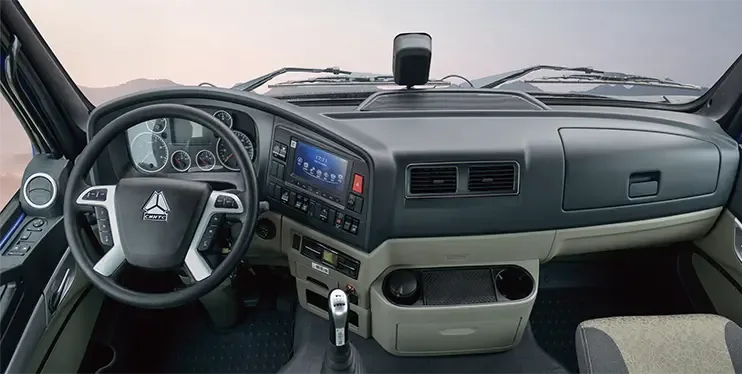

Superior Comfort
The HOWO-NX series cabin is a collaborative development between Sinotruk and a renowned Italian design company, featuring an elegant appearance, high safety standards, and outstanding comfort. Equipped with a four-point cabin suspension system, safety airbags, air suspension seats, spacious storage compartments, and an extra-wide 700mm sleeper, along with an advanced ergonomic design, it ensures exceptional comfort and safety.

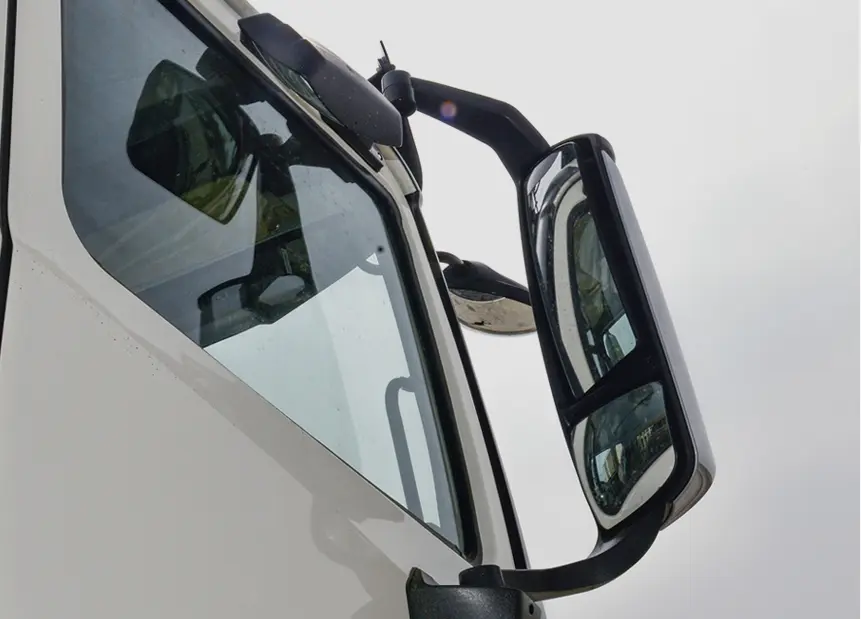

Safe Driving Cabin
The cabin’s rigidity and strength comply with the EU ECE R29 safety regulations. The wide-angle rearview mirrors and lower view mirror expand visibility by 15%, significantly enhancing driving safety.

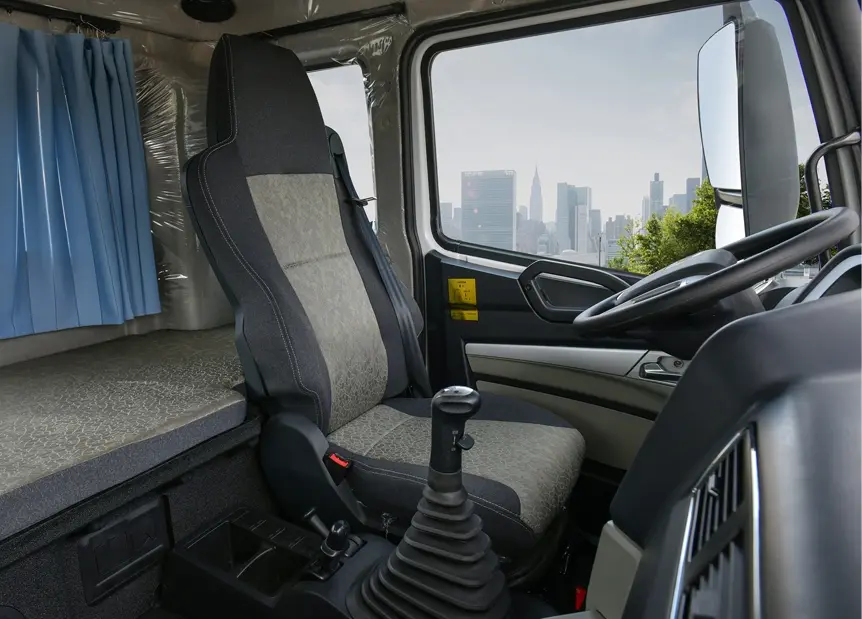

Air Suspension Seat
The air suspension seat allows drivers to quickly find the optimal sitting position. The integrated design of the seat belt and the seat is ergonomically compliant, avoiding the driver's feeling of suffocation caused by emergency braking during driving.
Four-Point Air Suspension
The four-point air suspension provides excellent stability, shock absorption, and comfort, and features a cabin rearward displacement function during collisions, ensuring passenger safety.
