Sinotruk HOWO NX 380HP 6x4 Mixer Truck
Mixer Truck / HOWO NX
Models (Technical Specs)
| Vehicle type | Mixer Trucks |
| Model | ZZ1257V384JB1R |
| Power | 380HP |
| Engine | WP10.380E22 |
| Stirring dynamic volume | 8m³-10m³ |
| Transmission | HW25712XACL |
| Drive type | 6x4 |
Overview
The star product of Heavy Duty Truck Howo NX series, Sinotruk Howo NX 6×4 Mixer Truck has become the backbone of concrete transportation field with its excellent performance. This Sinotruk Howo NX 6×4 Mixer Truck is equipped with MC series engine of German MAN technology, with maximum power up to 400 hp, and HW19710CL transmission, which enables the truck to maintain excellent fuel economy under heavy-duty working conditions.
Sinotruk Howo NX 6×4 Mixer Truck Core Advantage:
Mixing system: adopting 8m³ three-dimensional screw belt mixing drum to ensure the homogeneity of concrete reaches more than 98%.
Chassis design: 6×4 drive form with double-layer beam structure, the carrying capacity exceeds 16 tons.
Intelligent control: standard equipped with Beidou intelligent terminal, real-time monitoring of unloading speed and remaining square meters.
Sinotruk Howo NX 6×4 Mixer Truck Application Scenario:
The hydraulic system adopts Italian PMP gear pumps, which reduces the energy consumption of the mixer truck by 15% per revolution, thus truly realizing the operation concept of “pulling more and running faster”.
This Sinotruk Howo NX 6×4 Mixer Truck, which complies with the National VI emission standard, has become the first choice of many mixing stations, and its modularized design reduces the maintenance cost by more than 20% compared with competitors.
Sinotruk Howo NX 6x4 Mixer Truck
Sinotruk Howo NX 6×4 Mixer Truck is especially suitable for short and medium-distance transportation in urban mixing stations, and its 2700mm+1350mm wheelbase design is perfectly adapted to the complex road conditions at construction sites.
| Cabin | H77L cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn |
| Cabin (2) | with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
| Engine | Diesel 4-stroke direct injection diesel engine; Engine model:WP10.380E22，380HP; 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R; Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 1×9500 KGS; Steering with double T-cross section beam |
| Rear Axle | MCX16ZG, 2×16000 KGS; Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members; Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer |
| Chassis (2) | Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake; Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels; Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded; Starter: 24 V, 5.4 Kw; Alternator: 3-phase, 28 V, 1500 W; Batteries: 2 x 12 V, 165 Ah; Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 12.00R20, Radial (steel wire) Tires. 10+1 Pics. |
| Mixer Body | Tank Body: it can as your requirements |
| Fuel Tank | 400L |
| Overall Dimension | 9000*2550*3950 mm |

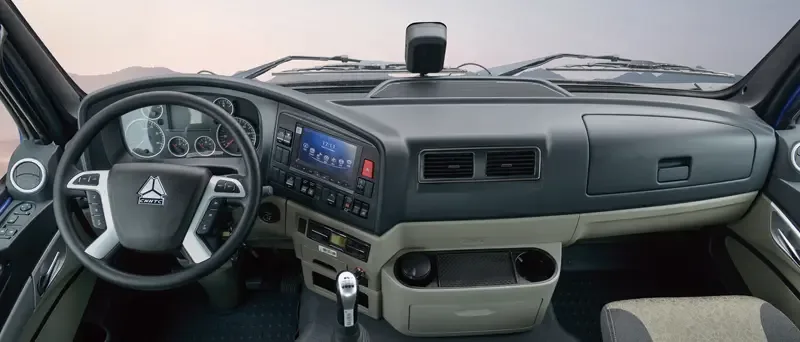

High comfort
The HOWO - NX series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.

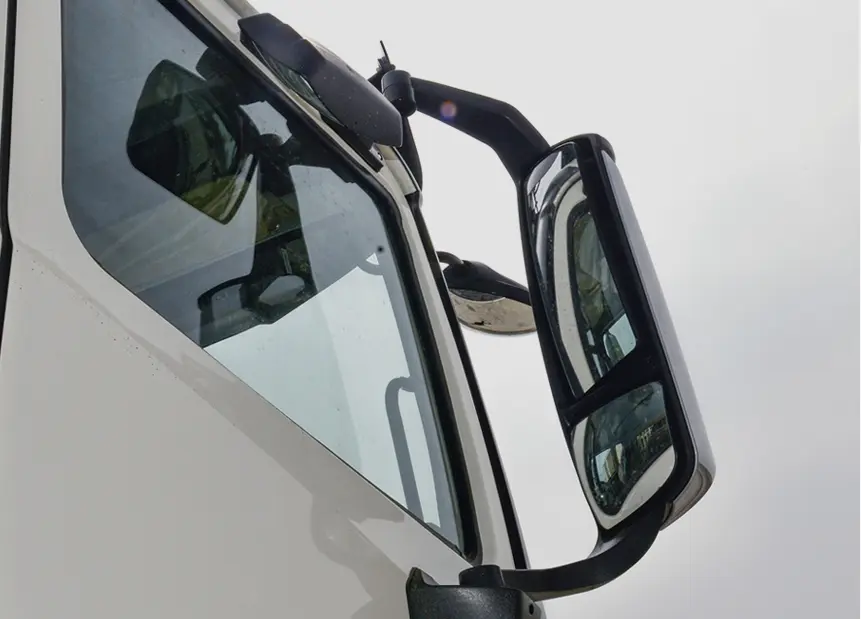

Safe cabin
The rigidity and strength of the cab body meet the EU ECE R29 certification standard; the design of the wide-angle rear-view mirror and lower viewing mirror increases the field of vision by 15% and improves safety.

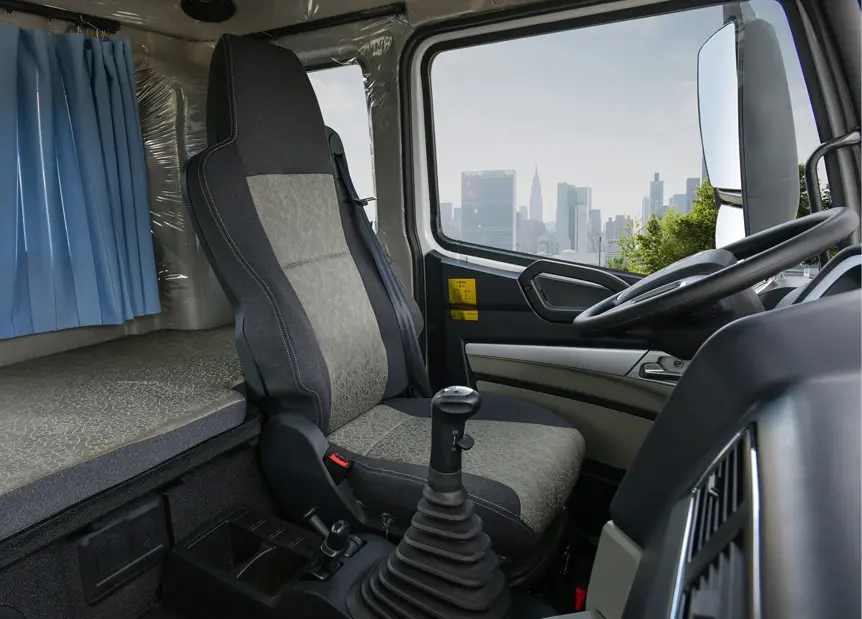

Air cushion
The air cushion helps the driver quickly find a suitable seating position; the ergonomic design of the seat belt and seat helps avoid the driver feeling suffocated due to emergency braking while driving.
Four-point air suspension
The four-point air suspension has good stability, shock-absorbing effect and comfort, and also has the function of tilting the cabin backward during a collision to ensure the safety of passengers.
