Sinotruk HOWO NX 371HP 8x4 Mixer Truck
Mixer Truck / HOWO NX
Models (Technical Specs)
| Vehicle type | Mixer Trucks |
| Model | ZZ1317V466JB1R |
| Power | 371HP |
| Engine | WD615.47 |
| Stirring dynamic volume | 14m³ |
| Transmission | Sinotruck HW13710L |
| Drive type | 8x4 |
Overview
As the fist product of Sinotruk Howo NX series, Sinotruk Howo NX 8×4 Mixer Truck is widely praised in the infrastructure field for its excellent performance. This 8×4 professional mixer truck is equipped with the MC11 series engine of MANN-TECHNOLOGY, with a maximum output of 440 hp, together with the HW19710CL gearbox, which provides Sinotruk Howo NX 8×4 Mixer Truck with a strong power guarantee.
The mixing drum of the Sinotruk Howo NX 8×4 Mixer Truck is made of high-strength, wear-resistant steel, with a volume range of 9-12 cubic meters, and a unique spiral blade design that ensures the homogeneity of the concrete. The modular design of the chassis and the optimized wheelbase of 1950+3450+1350mm make the Sinotruk Howo NX 8×4 Mixer Truck a well-balanced mixer truck in terms of throughput and payload. The Intelligent Control System, equipped with functions such as material level monitoring and speed memory, significantly improves the Sinotruk Howo NX 8×4 Mixer Truck’s operational precision.
Sinotruk Howo NX 8x4 Mixer Truck
In terms of safety, Sinotruk Howo NX 8×4 Mixer Truck is equipped with intelligent assistance systems such as AEBS automatic emergency braking and LDWS lane departure warning as standard. The GB7258-compliant all-steel cab has passed the ECE R29 crashworthiness certification, providing drivers with all-round protection. This model has been widely used in national key projects, demonstrating Sinotruk Howo NX 8×4 Mixer Truck’s technological leadership in the field of heavy commercial vehicles.
| Cabin | H77L cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn |
| Cabin (2) | with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
| Engine | Diesel 4-stroke direct injection diesel engine; Engine model: WD615.47; 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R; Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 1×9500 KGS; Steering with double T-cross section beam |
| Rear Axle | MCX16ZG, 2×16000 KGS; Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members; Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer |
| Chassis (2) | Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake; Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels; Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded; Starter: 24 V, 5.4 Kw; Alternator: 3-phase, 28 V, 1500 W; Batteries: 2 x 12 V, 165 Ah; Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 12.00R20, Radial (steel wire) Tires. 10+1 Pics. |
| Mixer Body | Tank Body: it can as your requirements |
| Fuel Tank | 400L |
| Overall Dimension | 9000*2550*3950 mm |

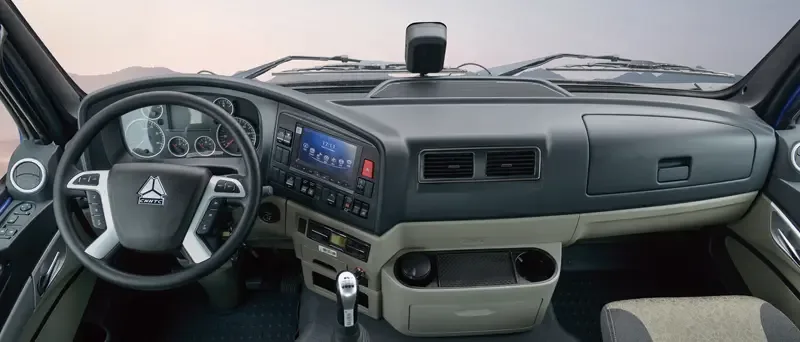

High comfort
The HOWO - NX series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.

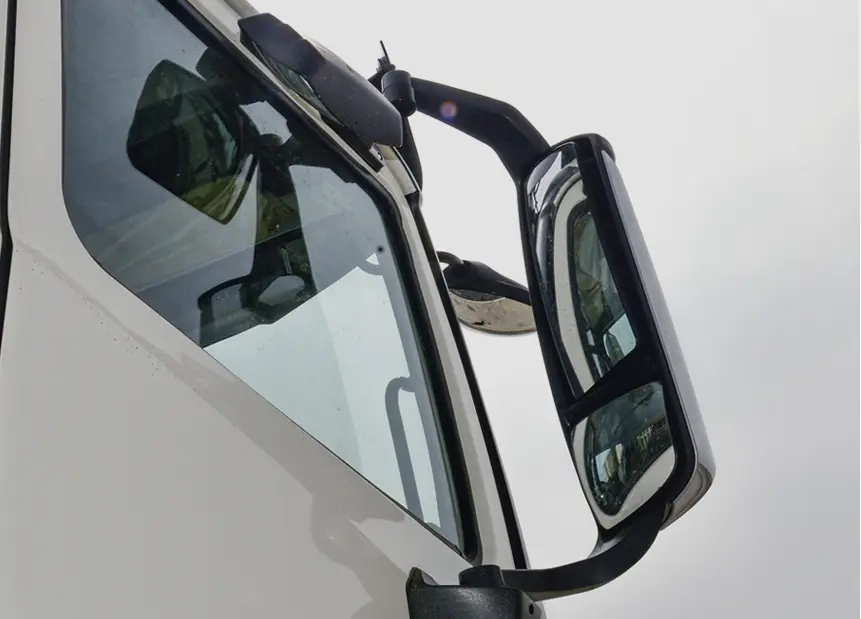

Safe cabin
The rigidity and strength of the cab body meet the EU ECE R29 certification standard; the design of the wide-angle rear-view mirror and lower viewing mirror increases the field of vision by 15% and improves safety.

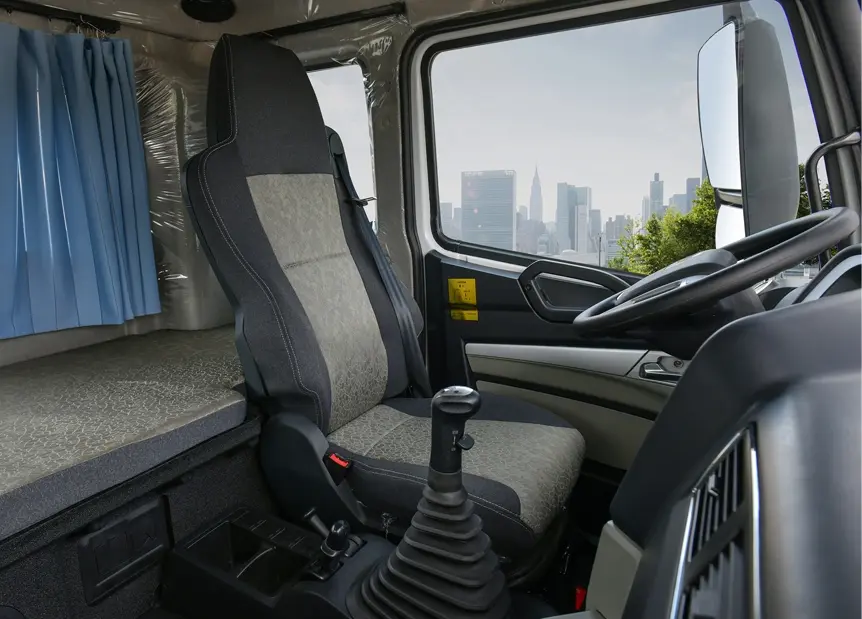

Air cushion
The air cushion helps the driver quickly find a suitable seating position; the ergonomic design of the seat belt and seat helps avoid the driver feeling suffocated due to emergency braking while driving.
Four-point air suspension
The four-point air suspension has good stability, shock-absorbing effect and comfort, and also has the function of tilting the cabin backward during a collision to ensure the safety of passengers.
