Sinotruk HOWO 7 380HP 8x4 Mixer Truck
Mixer Truck / HOWO 7
Models (Technical Specs)
| Vehicle type | Mixer Trucks |
| Model | ZZ1317V3267B1 |
| Total mass | 25t |
| Engine power | 380HP |
| Mixing dynamic volume | 14m³ |
| Engine | WP10.380E22 engine (PTO) |
| Drive type | 8x4 |
Overview
New Benchmark of Efficient Transportation: Sinotruk Howo 7 8×4 Mixer Truck
As the upgraded masterpiece of Sinotruk, Sinotruk Howo 7 8×4 Mixer Truck has become the preferred model in the field of concrete transportation with its technological innovation and high efficiency performance. The Sinotruk Howo 7 8×4 Mixer Truck adopts 8×4 all-wheel drive design and is equipped with a high-power National VI emission engine, which provides stable and strong power output and optimizes fuel efficiency, making it easy to adapt to rugged construction sites and long-distance transportation scenarios.
The Sinotruk Howo 7 8×4 Mixer Truck‘s mixing drum is made of lightweight alloy and double helical blade structure, which improves mixing uniformity by 15%, and provides faster unloading and lower residue rate. Sinotruk Howo 7 8×4 Mixer Truck reinforced chassis can carry 14-16 cubic meters of concrete, and with the intelligent hydraulic control system, it realizes precise mixing and efficient operation, which significantly shortens the project cycle.
Whether for large-scale infrastructure or municipal projects, the Sinotruk Howo 7 8×4 Mixer Truck, with its high load capacity, intelligence and low energy consumption, continues to empower modern construction and become a reliable partner in the field of construction and transportation.
Sinotruk Howo 7 8x4 Mixer Truck
In terms of intelligence, Sinotruk Howo 7 8×4 Mixer Truck is equipped with safety assistance functions such as panoramic video, lane departure warning, etc., and humanized cockpit design, which significantly improves the driver’s operating comfort and safety. The modularized design of key components ensures easy maintenance and excellent durability, combined with a nationwide warranty service network to ensure that users have nothing to worry about.
| Cabin | HW76 cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn |
| Cabin (2) | with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
| Engine | Diesel 4-stroke direct injection diesel engine; Engine model:WP10.380E22，380HP; 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R; Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 1×9500 KGS; Steering with double T-cross section beam |
| Rear Axle | MCX16ZG, 2×16000 KGS; Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members; Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer |
| Chassis (2) | Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake; Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels; Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded; Starter: 24 V, 5.4 Kw; Alternator: 3-phase, 28 V, 1500 W; Batteries: 2 x 12 V, 165 Ah; Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 12.00R20, Radial (steel wire) Tires. 10+1 Pics. |
| Mixer Body | Tank Body: it can as your requirements |
| Fuel Tank | 400L |
| Overall Dimension | 9000*2550*3950 mm |

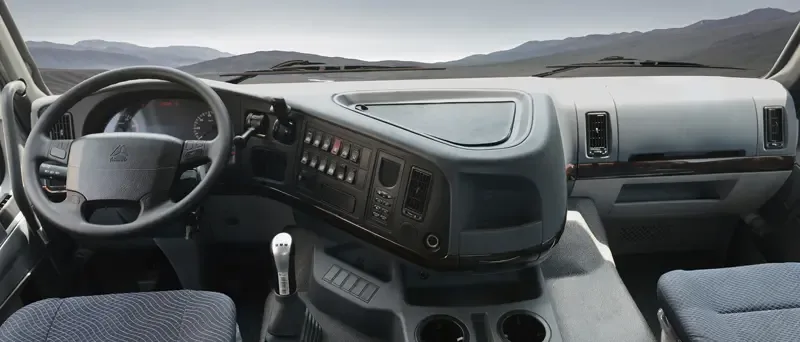

High comfort
The HOWO 7 series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.

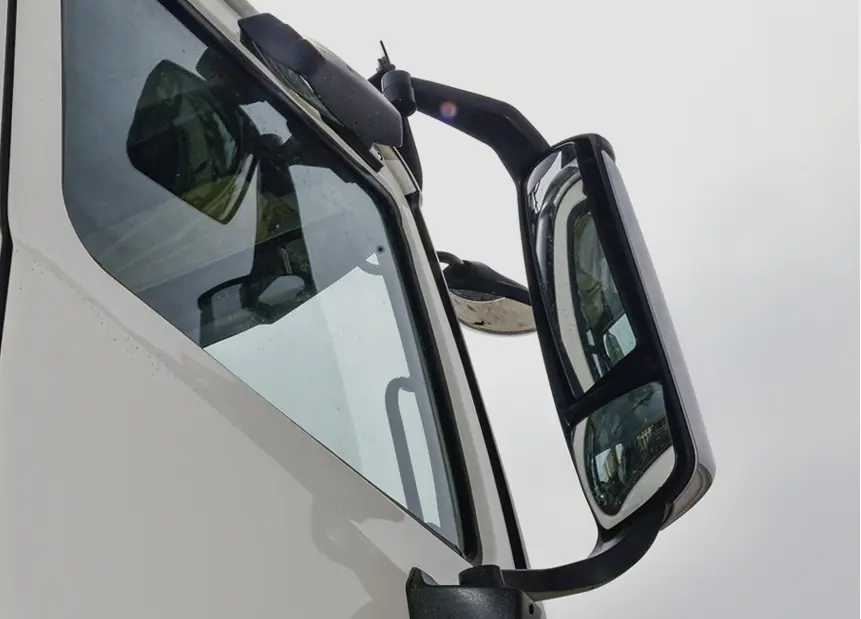

Safe cabin
The cabin's body is constructed with a one-piece steel frame, providing robust strength, rigidity, and superior resistance to impacts and external forces. Its safety performance has been proven through stringent crash testing.

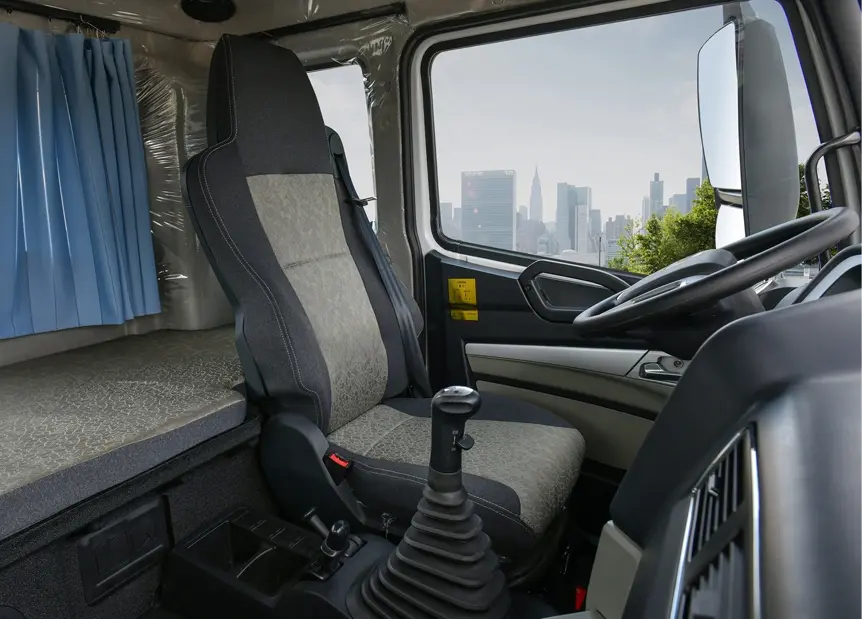

Air Suspension Seat
The air suspension seat allows drivers to quickly find the optimal sitting position. The integrated design of the seat belt and the seat is ergonomically compliant, avoiding the driver's feeling of suffocation caused by emergency braking during driving.
Four-Point Air Suspension
The four-point air suspension provides excellent stability, shock absorption, and comfort, and features a cabin rearward displacement function during collisions, ensuring passenger safety.
