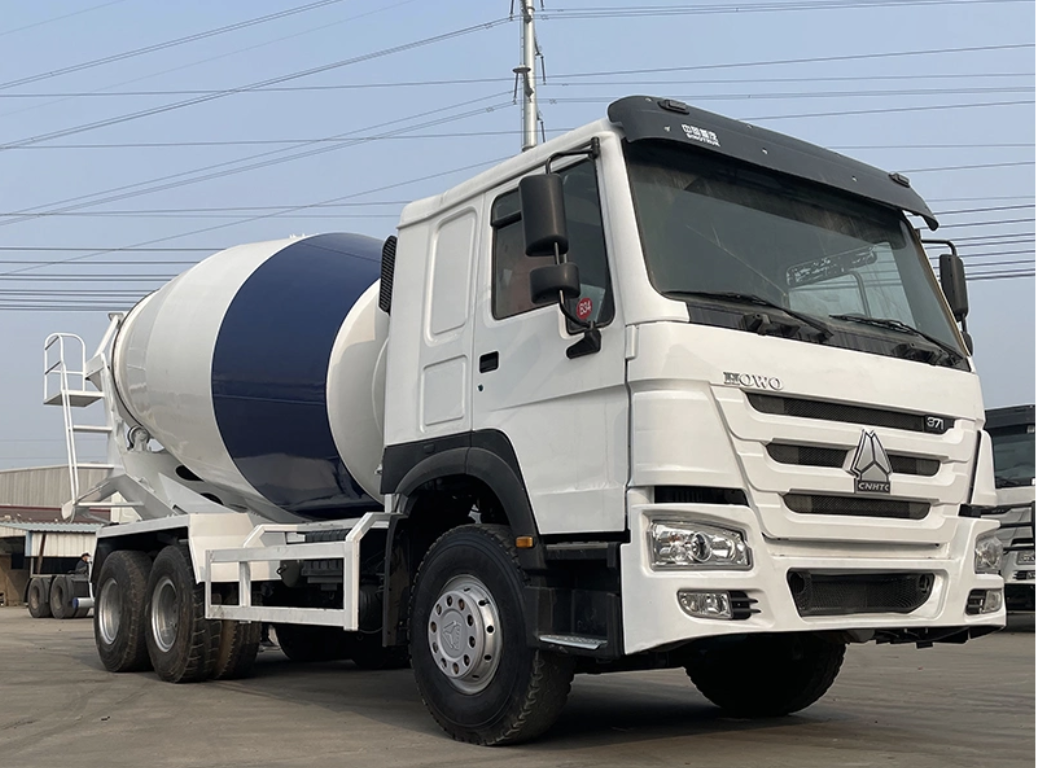

Sinotruk HOWO 6x4 Mixer Truck 371HP
Mixer Truck / HOWO 7
Models (Technical Specs)
| Vehicle Type | Special Vehicles |
| Model | ZZ1257NB3841W |
| Engine | WD615.47 |
| Power | 371HP |
| Drive Type | LHD 6X4 |
Sinotruk HOWO 7 Concrete Mixer 10CBM 371HP 6×4 LHD ZZ1257N3841W HOWO 7 concrete mixer adopts HOWO 7 chassis, equipped with 7 single sleeper cab, specially for export, equipped with Euro 2 common rail or electronic ramp, independently developed Euro IV heavy truck engine, imported standard ZF steering from Germany, HOWO 10 and 12 gearboxes, front axle HF9 tons, rear axle HC16 or AC16, with excellent load capacity to meet customer needs. The mixing tank is composed of high wear-resistant steel plates and cage molds to ensure the concentricity and roundness of the flanges, various parts of the cylinder and rolling elements to ensure the normal operation of the vehicle. The main body of the oil tank adopts double helical blades with moderate density and moderate cone shape, and there is a symmetrical stirring plate at the front door ball, and the blades and guide vanes are installed at the slots, so the material is used faster.
| Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat) |
| Front Axle | 1×HF9 ( 9 Tons) |
| Driving Axle | HC16, 16Tons |
| Steering | ZF8098 hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating withair assistance |
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire |
| Wheel base | 3825+1350(mm) |
| Tank body Capacity | 10CBM |
| The curb weight | 12800(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 102km/h |
| Color | White, red, green, golden and so on. |
SINOTRUK HOWO 6x4 Mixer Truck 371HP
Sinotruk HOWO 7 Concrete Mixer 10CBM 371HP 6×4 LHD ZZ1257N3841W HOWO 7 concrete mixer adopts HOWO 7 chassis, equipped with 7 single sleeper cab, specially for export, equipped with Euro 2 common rail or electronic ramp, independently developed Euro IV heavy truck engine, imported standard ZF steering from Germany, HOWO 10 and 12 gearboxes, front axle HF9 tons, rear axle HC16 or AC16, with excellent load capacity to meet customer needs. The mixing tank is composed of high wear-resistant steel plates and cage molds to ensure the concentricity and roundness of the flanges, various parts of the cylinder and rolling elements to ensure the normal operation of the vehicle.
The main body of the oil tank adopts double helical blades with moderate density and moderate cone shape, and there is a symmetrical stirring plate at the front door ball, and the blades and guide vanes are installed at the slots, so the material is used faster.
