Sinotruk HOWO NX 380 6x4 Dump Truck
Dump Truck / HOWO NX
Models (Technical Specs)
| Vehicle type | Dump Trucks |
| Model | ZZ3257V384JB1R |
| Power | 380hp |
| Engine | WP10.380E22 |
| Fuel tank | 300L |
| Transmission | Sinotruk HW19710 |
| Drive type | 6x4 |
Overview
A brand new Sinotruk Howo NX 380 6×4 Dump Truck is roaring its engine at a busy mine construction site. With its 6×4 all-wheel-drive chassis and reinforced cargo box, this 380 hp heavy-duty dump truck built by China National Heavy Duty Truck Corporation (Sinotruk) easily handles the task of transporting 50 tons of ore.
The Sinotruk Howo NX 380 6×4 Dump Truck is a powerful heavy-duty truck with a 380 hp engine for industries such as mining, construction and infrastructure. Sinotruk Howo NX 380 6×4 Dump Truck has a 20-cubic-meter cargo box and is capable of carrying 30 to 40 tons.
Sinotruk Howo NX 6x4 380 Dump Truck
The Sinotruk Howo NX 380 6×4 Dump Truck is made of high-strength steel with excellent torsion and compression resistance to adapt to harsh road conditions. Its hydraulic system is fast and stable, boosting efficiency and ensuring comfort for long hours of driving.Sinotruk Howo NX 380 6×4 tipper is ideal for heavy-duty transportation.
| Production Year | 2025, new truck. |
| Cabin | H77L cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner |
| Cabin (2) | with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.; High steel bumper, Inter-cooler Protection. |
| Engine | Diesel 4-stroke direct injection diesel engine; Engine model: WD615.47, 371HP; 6-cylinder in-line with water cooling, turbo-charging and intercooling; Displacement:9.726L |
| Transmission | HW19710, 10F & 2R, with HW50 Direct PTO; Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Front Axle | VGD95, 1*9500 KGS; Steering with double T-cross section beam |
| Rear Axle | MCP16ZG, 2×16000 KGS; Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Front suspension:11semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake; Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels; Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded; Starter: 24 V, 5.4 Kw; Alternator: 3-phase, 28 V, 1500 W; Batteries: 2 x 12 V, 165 Ah; Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Fuel Tank | 300L |
| Tire | 12.00R20, Radial (steel wire) Tires . 10+1 Pics |
| Cargo body | 5400x2300x1450mm. 18 Cubic Meters |
| Color | Optional |
| Overall Dimension | 8600*2550*3450 mm |

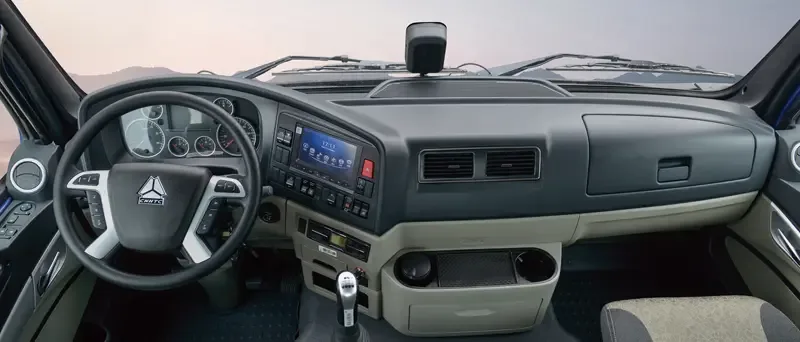

High comfort
The HOWO - NX series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.

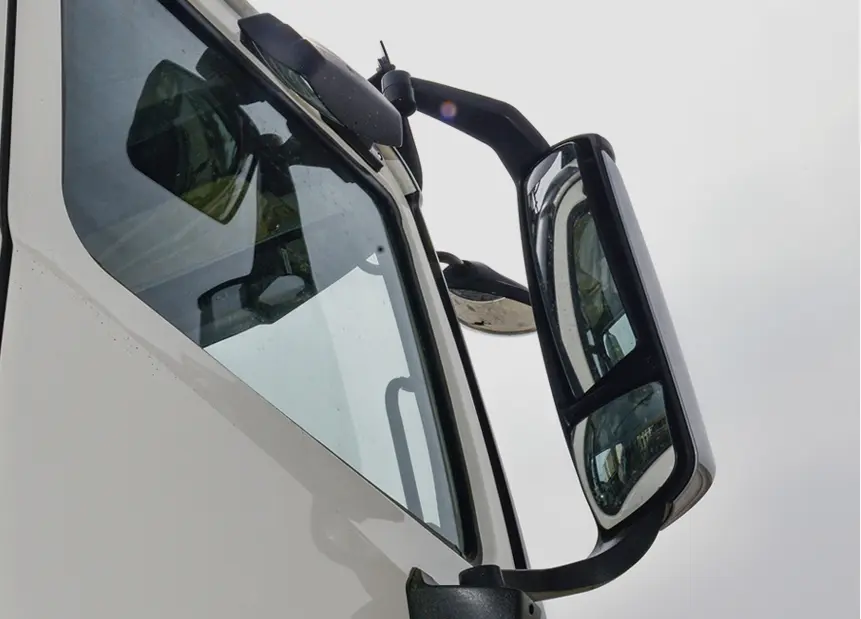

Safe cabin
The rigidity and strength of the cab body meet the EU ECE R29 certification standard; the design of the wide-angle rear-view mirror and lower viewing mirror increases the field of vision by 15% and improves safety.

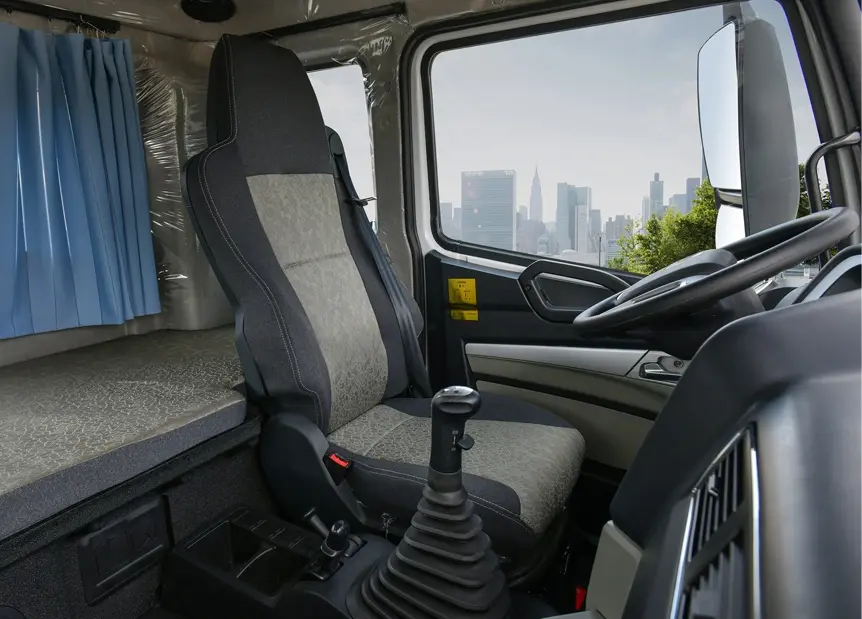

Air cushion
The air cushion helps the driver quickly find a suitable seating position; the ergonomic design of the seat belt and seat helps avoid the driver feeling suffocated due to emergency braking while driving.
Four-point air suspension
The four-point air suspension has good stability, shock-absorbing effect and comfort, and also has the function of tilting the cabin backward during a collision to ensure the safety of passengers.
