Sinotruk HOWO TX 430 8x4 Dump Truck
Dump Truck / HOWO TX Dump Truck
Models (Technical Specs)
| Vehicle type | Dump Trucks |
| Model | ZZ3317V386GB1R |
| Dimension(mm) | 10800*2550*3250 |
| Engine | WD615.47 |
| Max Horsepower | 400HP |
| Transmission | HW19710 |
| Drive type | 8x4 |
Overview
The King of Heavy Duty Transportation: the Sinotruk Howo TX 430 8×4 Tipper Truck
In the field of heavy-duty transportation, the Sinotruk Howo TX 430 8×4 Tipper Truck stands out with its power and excellent performance. Equipped with a powerful 430 horsepower engine, this Sinotruk Howo TX 430 8×4 Tipper Truck provides plenty of power for a variety of heavy-duty jobs.
The Sinotruk Howo TX 430 8×4 Tipper Truck’s cargo box design is optimized for high loading capacity and tipping efficiency. The advanced hydraulic system makes the Sinotruk Howo TX 430 8×4 Tipper Truck smoother and faster during unloading, which greatly improves work efficiency.
From an economic point of view, the Sinotruk Howo TX 430 8×4 Tipper Truck’s fuel consumption is well controlled and maintenance is relatively easy, enabling operators to get a better return on investment. Many logistics companies and engineering contractors choose the Sinotruk Howo TX 430 8×4 Tipper Truck as their main transportation equipment.
With its reliable quality, powerful performance and economical operating costs, the Sinotruk Howo TX 430 8×4 Tipper Truck has set the benchmark in the heavy-duty tipper market, making it the ideal choice for modern engineering and construction and material transportation.
Sinotruk Howo TX 430 8x4 Tipper Truck
The Sinotruk Howo TX 430 8×4 Tipper Truck features an 8×4 drive configuration with four drive wheels to ensure excellent traction and passing power in tough road conditions. Whether on a construction site or in a quarry, the Sinotruk Howo TX 430 8×4 Tipper Truck is capable of performing a wide range of dumping tasks in a stable and reliable manner.
| Production Year | 2025, new truck. |
| Cabin | TX-F cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner |
| Cabin (2) | with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.; High steel bumper, With inter-cooler fence. |
| Engine | Diesel 4-stroke direct injection diesel engine; Engine model: WD615.47, 371HP; 6-cylinder in-line with water cooling, turbo-charging and intercooling; Displacement: 9.726 L |
| Transmission | HW19710, 10F & 2R, with HW50 PTO; Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | VGD95, 9500 KGS; Steering with double T-cross section beam |
| Rear Axle | MCP16ZG, 2*16000KG; Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Front suspension:11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension:11leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake; Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels; Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded; Starter: 24 V, 5.4 Kw; Alternator: 3-phase, 28 V, 1500 W; Batteries: 2 x 12 V, 165 Ah; Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Fuel Tank | 300L |
| Tire | 12.00R20, Radial (steel wire) Tires. 12+1 Pics |
| Cargo Body | 7300X2300X1700mm, 28.54Cubic Meters; Thickness: Floor 8 mm, Side 6 mm; Front Lifting System |
| Overall Dimension | 11800*2550*3500 mm |
| Color | Optional |

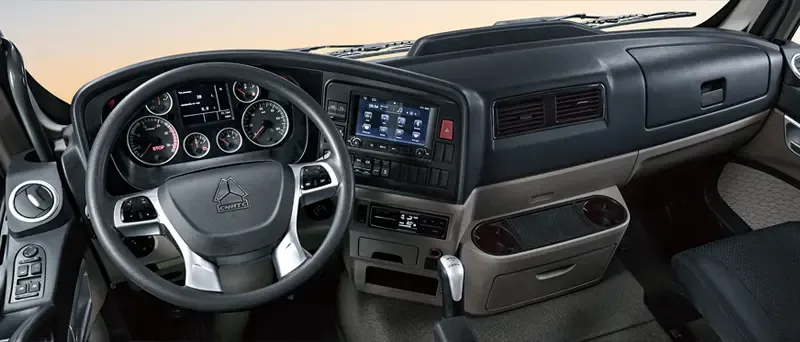

Excellent Ergonomic Design
Sinotruk Howo TX 430 8x4 Tipper Truck ,All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.
High Comfort
Featuring an adjustable air suspension seat, the Sinotruk Howo TX 430 8x4 Tipper Truck offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort. Crafted from high-quality, breathable materials, the seat effectively reduces fatigue during long drives.
The thoughtfully designed rest area prioritizes driver well-being, featuring a comfortable sleeper berth to ensure a restorative rest after completing a journey, allowing drivers to recharge and prepare for the road ahead.

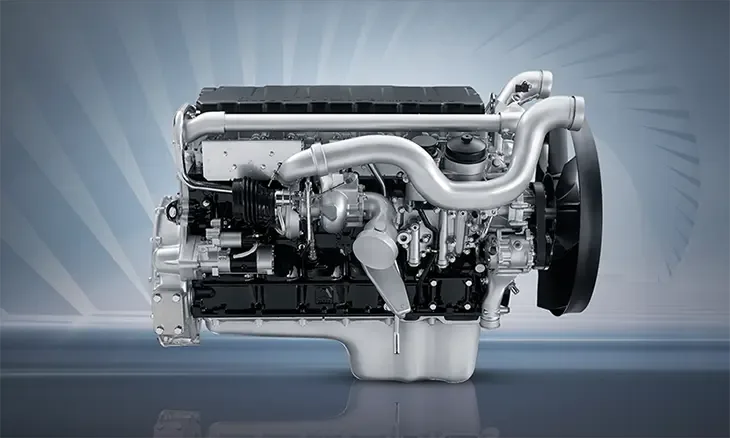

SINOTRUK's Exclusive High-End Power
Sinotruk Howo TX 430 8x4 Tipper Truck ,Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.

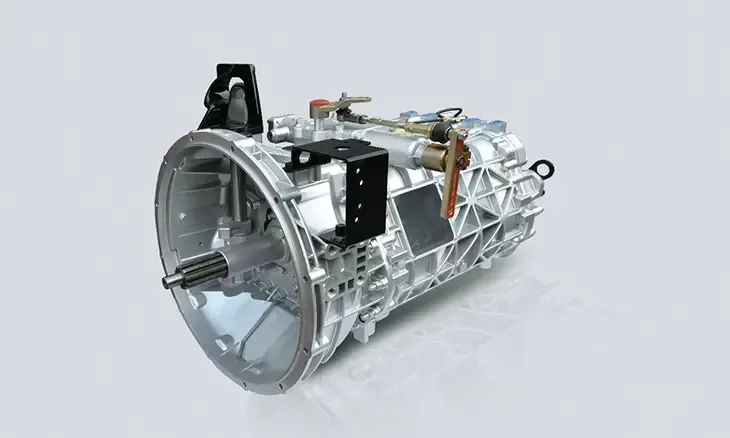

Transmission - Always in the Right Gear
Sinotruk Howo TX 430 8x4 Tipper Truck ,The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.

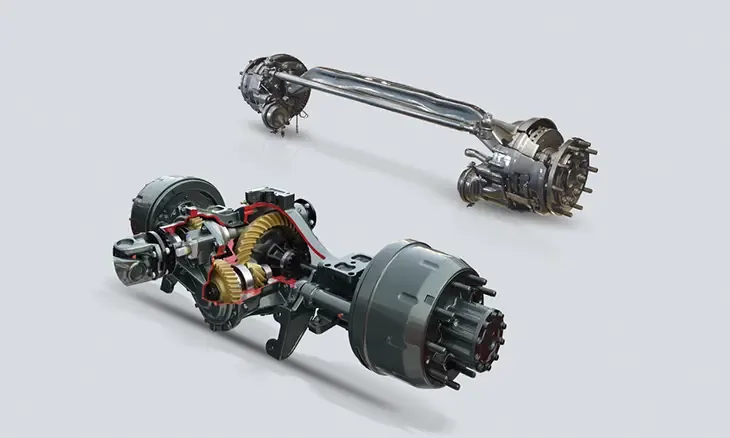

Axles - Carry More, Cost Less
Sinotruk Howo TX 430 8x4 Tipper Truck -The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life to accommodate various road conditions.
