Sinotruk HOWO TX 371 6x4 Dump Truck
Dump Truck / HOWO TX Dump Truck
Models (Technical Specs)
| Vehicle type | Dump Trucks |
| Model | ZZ3257N384GB1R |
| Dimension(mm) | 8600*2550*3450 |
| Engine | WD615.47 |
| Max Horsepower | 371HP |
| Transmission | HW19710 |
| Drive type | 6x4 |
Overview
Efficient Transportation: Sinotruk Howo TX 371 6×4 Tipper Truck
In the field of heavy-duty dump trucks, the Sinotruk Howo TX 371 6×4 Tipper Truck has become the preferred transportation equipment for many projects due to its outstanding performance and reliable quality. This Sinotruk Howo TX 371 6×4 Tipper Truck is powered by a 371 hp engine, providing strong and long-lasting power for a variety of heavy-duty operations.
The Sinotruk Howo TX 371 6×4 Tipper Truck’s well-designed 6×4 drive configuration ensures excellent towing performance and fuel economy. In urban construction and roadwork, the Sinotruk Howo TX 371 6×4 Tipper Truck demonstrates excellent maneuverability and control, and is able to easily cope with a variety of complex work environments.
The durability and reliability of the Sinotruk Howo TX 371 6×4 Tipper Truck has brought significant economic benefits and a satisfactory return on investment, as many transportation companies have reported that the maintenance costs of the truck are relatively low and breakdowns are rare.
Sinotruk Howo TX 371 6x4 Tipper Truck
From a technical point of view, Sinotruk Howo TX 371 6×4 Tipper Truck adopts an advanced hydraulic tipping system, which makes tipping efficient and easy to operate. The Sinotruk Howo TX 371 6×4 Tipper Truck has an optimized cargo box design, which not only has a high loading capacity, but also unloads the truck thoroughly, greatly improving operational efficiency.
| Production Year | 2025, new truck. |
| Cabin | TX-F cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner |
| Cabin (2) | with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.; High steel bumper, Inter-cooler Protection. |
| Engine | Diesel 4-stroke direct injection diesel engine; Engine model: WD615.47, 371HP; 6-cylinder in-line with water cooling, turbo-charging and intercooling; Displacement:9.726L |
| Transmission | HW19710, 10F & 2R, with HW50 Direct PTO; Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Front Axle | VGD95, 1*9500 KGS; Steering with double T-cross section beam |
| Rear Axle | MCP16ZG, 2×16000 KGS; Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.; Ratio:5.92 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Front suspension:11semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake; Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels; Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded; Starter: 24 V, 5.4 Kw; Alternator: 3-phase, 28 V, 1500 W; Batteries: 2 x 12 V, 165 Ah; Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Fuel Tank | 300L |
| Tire | 12.00R20, Radial (steel wire) Tires . 10+1 Pics |
| Cargo body | 5400x2300x1450mm. 18 Cubic Meters |
| Color | Optional |
| Overall Dimension | 8600*2550*3450 mm |

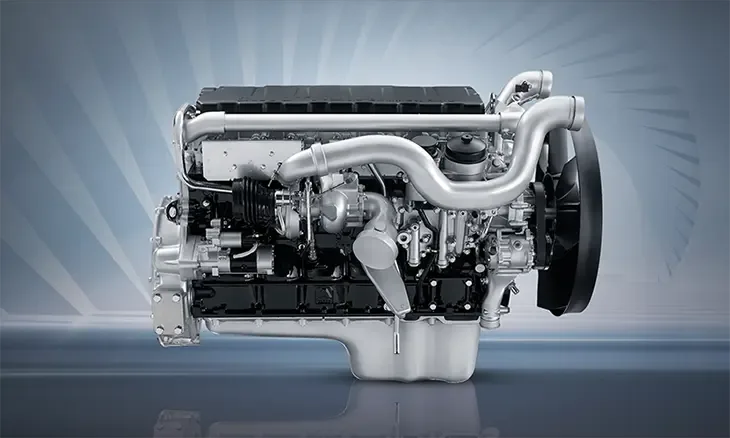

SINOTRUK's Exclusive High-End Power
Sinotruk Howo TX 371 6x4 Tipper Truck,Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.

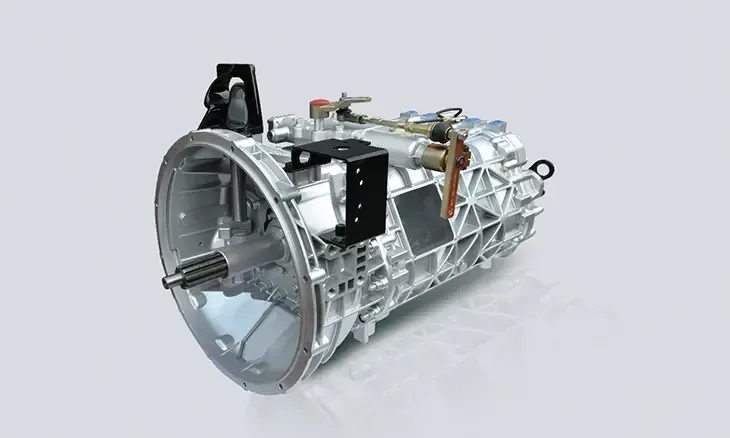

Transmission - Always in the Right Gear
Sinotruk Howo TX 371 6x4 Tipper Truck,The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.
