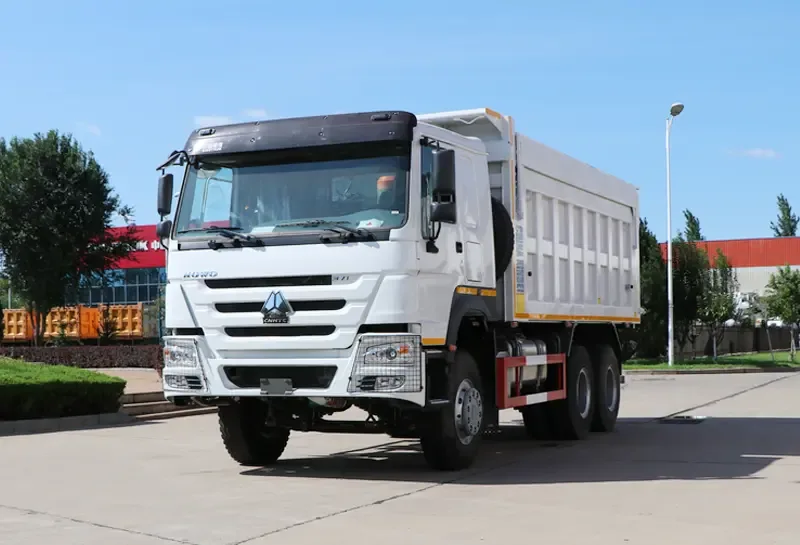

Sinotruk HOWO 6x4 Dump Truck
Dump Truck / HOWO 7
Models (Technical Specs)
| Vehicle type | Dump Trucks |
| Model | ZZ3257N3847B1 |
| Engine (Ps) | Euro 2 |
| Fuel Tank | 300L |
| Dimension | 8600*2550*3450 |
| Transmission | HW19710 |
Overview
Sinotruk howo 6×4 dump truck is a mature model of SINOTRUK with the reliable and stable structure design, high bearing capacity, excellent engine force and highly stable performance, with its fame forged in construction and mining industries with adverse operating environments, available for the short-range earthwork transportation tasks for mines and construction projects.
Sinotruk howo 6x4 dump truck -The Versatile HOWO
The highly-general chassis can perfectly complete the tasks in various scenarios; a variety of cabs with different configurations can meet your different driving needs; Engines at various HP + transmissions with various torques can use the horsepower requirements in various scenarios. In short, no matter what you need, you have made the right choice to give it to the versatile HOWO TX.
| Production Year | 2025, new truck. |
| Cabin | HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner |
| Cabin (2) | with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.; High steel bumper, With inter-cooler fence. |
| Engine | Diesel 4-stroke direct injection diesel engine; Engine model: WD615.47, 371HP,; 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R, with HW50 PTO; Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | VGD95, 9500 KGS; Steering with double T-cross section beam |
| Rear Axle | MCP16ZG, 2*16000KG; Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Front suspension:11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension:11leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake; Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels; Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded; Starter: 24 V, 5.4 Kw; Alternator: 3-phase, 28 V, 1500 W; Batteries: 2 x 12 V, 165 Ah; Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Fuel Tank | 300L |
| Tire | 12.00R20, Radial (steel wire) Tires. 12+1 Pics |
| Cargo Body | 7300X2300X1700mm, 28.54Cubic Meters; Thickness: Floor 8 mm, Side 6 mm; Front Lifting System |
| Overall Dimension | 11800*2550*3500 mm |
| Color | Optional |

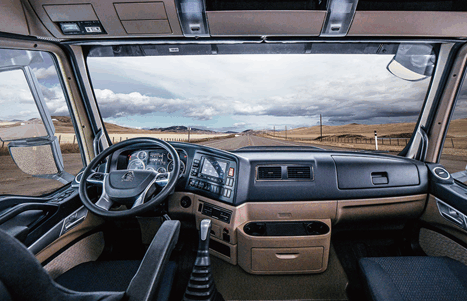

Smarter and more convenient
The 7-inch central control screen is adopted for convenient human-computer interaction. The multi-functional leather steering wheel are provided with 16 buttons, which are easy to operate and can be upgraded with functions such as Bluetooth phone, MP5 player, instrument menu and AEB.
More comfortable
Optimized air distribution at the driver and passenger side vents can provide a more comfortable body feeling. The overall air volume has increased by 9.5% compared to the previous generation.
Under the sleeper, an integrated super-large storage space is added to make the space utilization more reasonable.

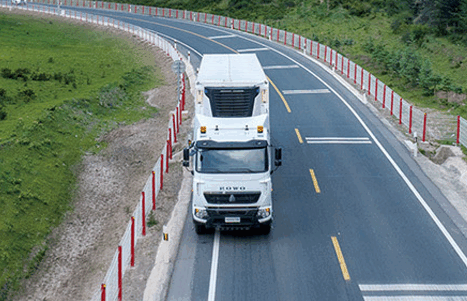

More safely,more quieter
The cab is designed with four-point suspension, which can filter out bumps and vibrations. Moreover, the cab shock absorbers and chassis shock absorbers have undergone comprehensive recalibration and tuning, so that the noise level of the complete vehicle is reduced by 3dB, creating a quieter driving environment.

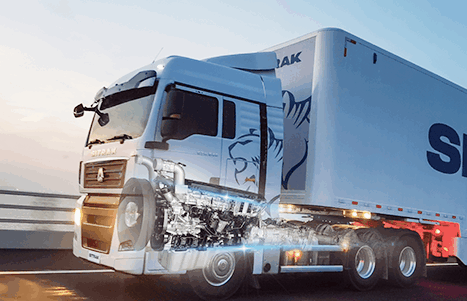

Golden Power
The Howo TX truck is upgraded to a new generation of golden power system, providing a richer range of power configurations to meet different needs. It can output strong power of up to 540 HP and 2500 Nm, and fully meet the emission requirements of Euro ll to Euro VI.

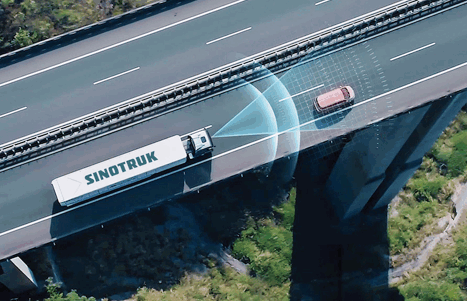

Advanced Driver Assistance System (ADAS)
We embrace a people-first approach to safety, putting the well-being of all road users at the forefront. Utilizing digital technology for intelligent monitoring and control, we wholeheartedly safeguard your safety during your journey.
